TE Connectivity SMW Wire Wound High Power Surface Mount Resistor 330mΩ ±5% 5W - TE Connectivity

roll over the image to zoom in

£0.00
£7.99
RS 664-1556
Earn0
reward points

In stock: 80

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    5
    Unit Type:
    Unit


    TE Connectivity


    TE Connectivity SMW Series Wire Wound High Power Surface Mount Resistor 330mΩ ±5% 5W ±200ppm/°C


    • BMUK Part # :-664-1556
    • BrandTE Connectivity
    • Mfr. Part No.SMW5R33JT
    •
    • You will get a pack of 5 resistors on tape
    TE Connectivity



    TE Connectivity SMW Series Wire Wound High Power Surface Mount Resistor 330mΩ ±5% 5W ±200ppm/°C

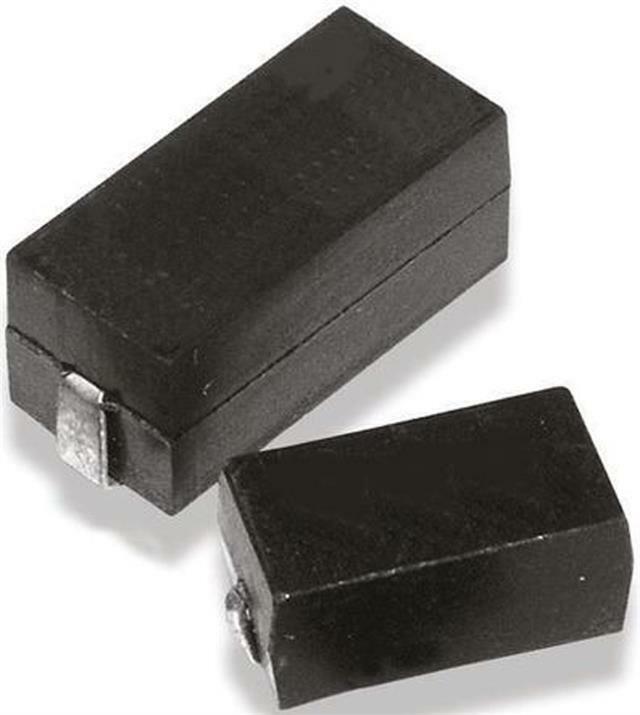

    Image representative of range



    Product Details

    SM Wirewound 5W

    Low Profile Wire-Wound Design
    Very Wide Value Range
    Ideal for Power Circuitry
    Available in 1, 2, 3 or 5 Watts

    Power at 70°C5W
    Resistance Tolerance±5%
    Temperature Coefficient±200ppm/°C
    Operating Temperature-55°C to +200°C
    Operating Voltage500V (Max.)
    Dimensions (LxWxT)13.5x7.3x6.8mm

    Surface Mount - Moulded Power



    Specifications


    Resistance330 mΩ
    Tolerance±5%
    Power Rating5W
    Temperature Coefficient±200ppm/°C
    TechnologyWire Wound
    Dimensions17 x 7.3 x 6.8mm
    Length17mm
    Depth7.3mm
    Height6.8mm
    SeriesSMW
    Maximum Temperature Coefficient+200ppm/°C
    Minimum Temperature Coefficient-200ppm/°C
    Case StyleMoulded






    For a Specification PDF Please  CLICK HERE
