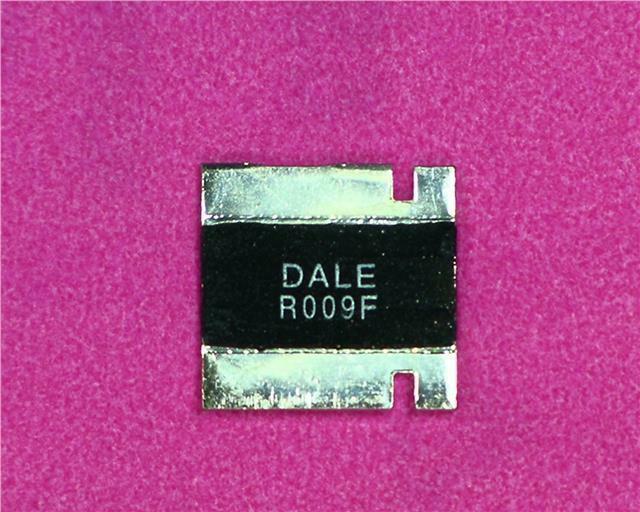

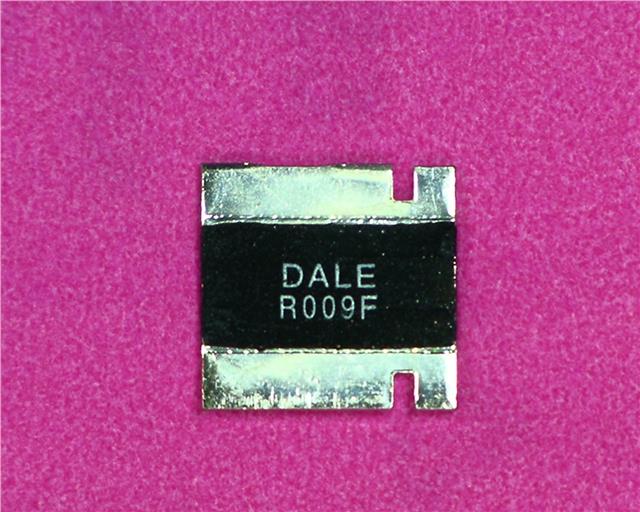

5 x Vishay WSL Metal Strip Low Ohm Current Sense Resistor SM 3637 9mΩ 3 Watt ±1% - Vishay
roll over the image to zoom in
£0.00
£8.99
RS 683-6640
Vishay
Vishay WSL Series Metal Strip Low Ohmic Surface Mount Resistor 3637 Case 9mΩ ±1% 3W ±50ppm/°C
You will get 5 resistors on SM tape
4-Terminal design allows for 0.5% resistance tolerance down to 3mΩ
Product Details3637 Format WSL Series
Low thermal EMF (<3 μV/°C)
Very low inductance, 0.5 nH to 5 nH
Excellent frequency response to 50 MHz
All welded construction
Ideal for all types of current sensing, voltage division and pulse applications including switching and linear power supplies, instruments and power amplifiersPower at 70°C 3 W Resistance Tolerance 1 % Temperature Coefficient 50 ppm/°C Operating Temperature -65 → 170 °C Dimensions (LxWxT) 9.14 x 9.4 x 0.635 mm Surface Mount - 3637
SpecificationsResistance 9mΩ Package/Case 3637 Tolerance ±1% Power Rating 3W Temperature Coefficient ±50ppm/°C Technology Metal Strip Dimensions 9.14 x 9.4 x 0.635mm Length 9.14mm Depth 9.4mm Height 0.635mm Series WSL Minimum Operating Temperature -65°C Maximum Operating Temperature 170°C Maximum Temperature Coefficient 50ppm/°C Minimum Temperature Coefficient -50ppm/°C Case Style Moulded
