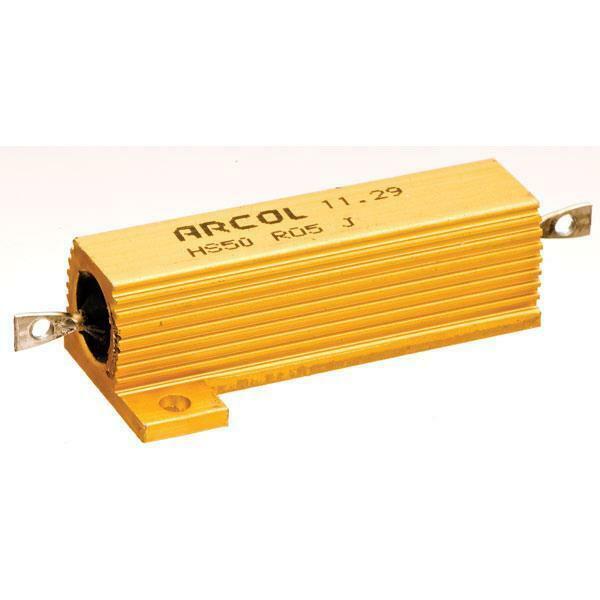

1 x Arcol Aluminium Housed Axial Panel Mount Resistor HS15 1R J, 1Ω ±5% 15W - Arcol
roll over the image to zoom in
£0.00
£6.99
RS 159-720
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 34T
Arcol
Arcol HS15 Series Aluminium Housed Axial Panel Mount Resistor, 1Ω ±5% 15W
- BrandArcol
- Mfr. Part No.HS15 1R J
-
- You will get 1 Resistor
Product Details
15W Aluminium housed wire-wound power resistor, HS Series
15Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Compact size for Power rating
Winding construction maximises High Pulse Capability
| Power at 25°C | 8W without Heatsink @25°C |
| 15W with 5.1°C/W Heatsink @25°C | |
| Resistance Tolerance | ±5% |
| Temperature Coefficient | <1KΩ ±100ppm/°C,>1KΩ ±25ppm/°C |
| Operating Temperature | -55°C → +200°C |
| Limiting Element Voltage | 265Vdc/Vac (rms) |
| Insulating Resistance | 10000MΩ |
| Length | 36.5 mm |
| Width | 21.0 mm |
| Height | 11.0 mm |
| Weight | 7 g |
Note
To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
Aluminium Housed, Wirewound - 5 to 600W
Specifications
| Resistance | 1 Ω | |
| Power Rating | 15W | |
| Series | HS15 | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±5% | |
| Technology | Wire Wound | |
| Termination Style | Axial | |
| Minimum Temperature Coefficient | -100ppm/°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Temperature Coefficient | ±100ppm/°C | |
| Dimensions | 11 x 36.5 x 21mm | |
| Board Level Components | Y | |
| Overall Width | 21mm | |
| Overall Length | 36.5mm | |
| Overall Height | 11mm |
