930 x Panasonic FC8J33040L Dual N-channel MOSFET Transistor, 5.5A, 33V Depletion - Panasonic

roll over the image to zoom in

£0.00
£424.99
RS 749-8252
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    930
    Unit Type:
    Unit
    Location:
    APR BOX A


    Panasonic





    Panasonic FC8J33040L Dual N-channel MOSFET Transistor, 5.5 A, 33 V Depletion, 8-Pin WMini8-F1


    • BMUK Part # :-749-8252
    • BrandPanasonic
    • Mfr. Part No.FC8J33040L
    •  Panasonic
    •
    • You will get 930 Transistors on 1 Reel



    Panasonic FC8J33040L Dual N-channel MOSFET Transistor, 5.5 A, 33 V Depletion, 8-Pin WMini8-F1

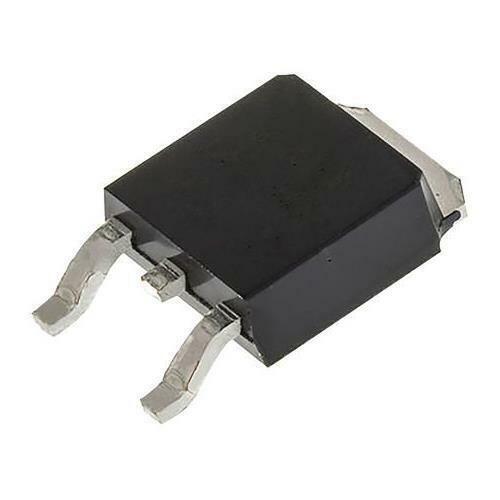

    Image representative of range



    Product Details

    N-Channel MOSFET, Panasonic


    MOSFET Transistors, Panasonic


    Specifications

    Channel TypeN
    Maximum Continuous Drain Current5.5 A
    Maximum Drain Source Voltage33 V
    Maximum Drain Source Resistance68 mΩ
    Maximum Gate Threshold Voltage2.5V
    Maximum Gate Source Voltage±20 V
    Package TypeWMini8-F1
    Mounting TypeSurface Mount
    Pin Count8
    Channel ModeDepletion
    CategoryPower MOSFET
    Maximum Power Dissipation1.3 W
    Number of Elements per Chip2
    Typical Input Capacitance @ Vds220 pF@ 10 V
    Typical Gate Charge @ Vgs2.8 nC @ 4.5 V
    Minimum Operating Temperature-55 °C
    Typical Turn-On Delay Time7 ns
    Width2.4mm
    Height0.83mm
    Maximum Operating Temperature+150 °C
    Typical Turn-Off Delay Time15 ns
    Length2.9mm
    Dimensions2.9 x 2.4 x 0.83mm




    For a Specification PDF Please CLICK HERE
