20 x Vero Technologies 20-313137 PCB Test Terminal Post for 1.02mm Hole RED - Vero Technologies
roll over the image to zoom in
£0.00
£5.99
RS 508-0685 x 20
Unit Quantity:
20
Unit Type:
Unit
Vero Technologies
Vero Technologies 1.02mm Black Terminal Post
- BMUK Part # :-508-0685
- BrandVero Technologies
- Mfr. Part No.20-313137
- You will get a bag of 20 Test Terminals,
- Basic Micro Uk offer these at the best price on eBay !
 |
Product Details

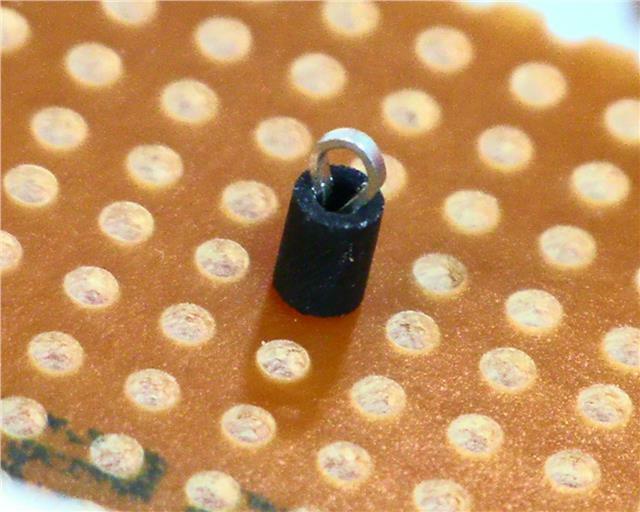

Loop Terminal Assemblies

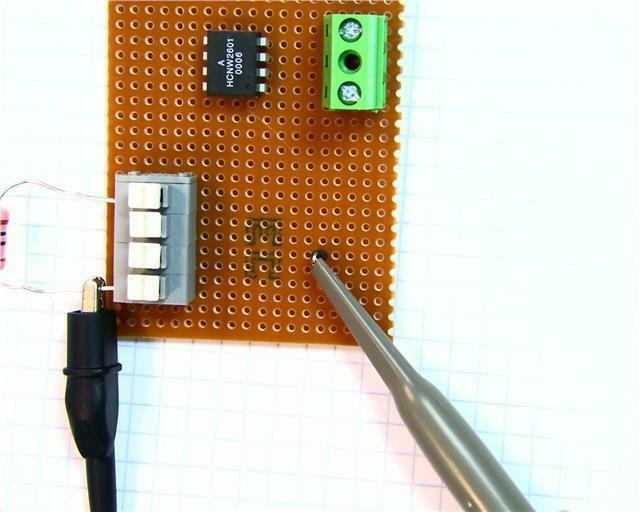

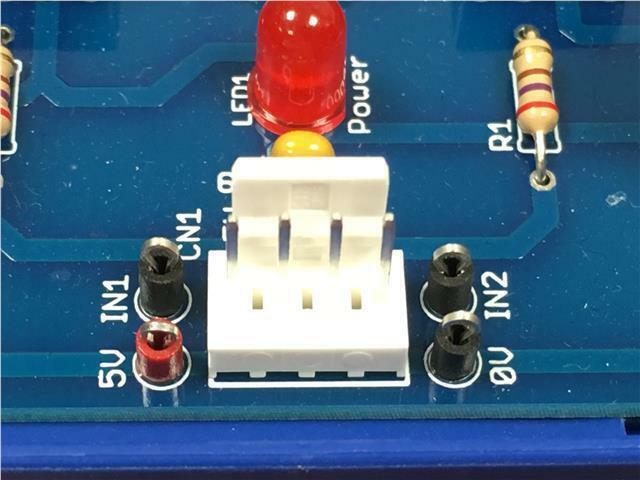

Applications include terminal connections for data or power on plated through hole prototype boards and as a scope probe terminal on production boards
Spring design allows terminal to be inserted without damaging the hole plating
Terminal will remain in place when the board is reversed for soldering
The sintered glass head has a maximum working temperature of 475.C
Assemblies are available for two common hole diameters (1.32mm and 1.0mm)
Supplied in bags of 20 loop terminal assemblies, see our other items for 100 off lots
| Dimensions | |||
| Hole dia (mm) | Loop i/d (mm) | Height (mm) | Stock No |
| 0.8 to 1.2 | 1.1 to 1.3 | 3.1 to 3.3 | 101-2391 |
PCB Accessories
Specifications
| Colour | Red | |
| Hole Diameter | 1.02mm | |
| Body Material | Phosphor Bronze |
