2 x Vishay IRF840PBF N-channel MOSFET Transistor, 8 A, 500 V, 3-pin TO-220AB - Vishay

roll over the image to zoom in

£0.00
£7.25
RS 541-0036
Earn0
reward points

In stock: 8

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    5
    Unit Type:
    Unit
    Location:
    TS 35Q


    Vishay

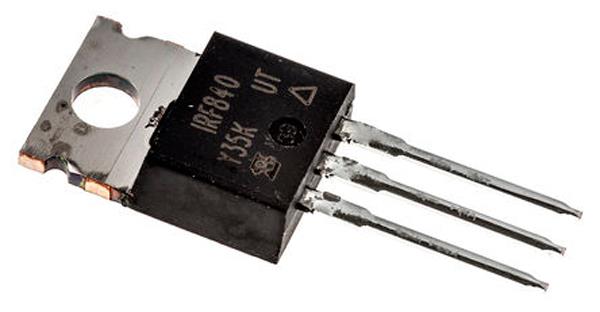

    Vishay IRF840PBF N-channel MOSFET Transistor, 8 A, 500 V, 3-pin TO-220AB

    You will get a pack of 2 Mosfet Transistors

    BMUK Part # :-541-0036
  • BrandVishay
  • Mfr. Part No.IRF840PBF
  •
    • Vishay
    Shop Categories
    NEW RELEASES
    FEATURED PRODUCTS
    5 x Vishay IRF840PBF N-channel MOSFET Transistor, 8 A, 500 V, 3-pin TO-220AB
    Vishay IRF840PBF N-channel MOSFET Transistor, 8 A, 500 V, 3-pin TO-220AB
    Product Details

    N-Channel MOSFET, 8A to 9A, Vishay Semiconductor




    MOSFET Transistors, Vishay Semiconductor

    Specifications
    CategoryPower MOSFET
    Channel ModeEnhancement
    Channel TypeN
    ConfigurationSingle
    Dimensions10.41 x 4.7 x 9.01mm
    Height9.01mm
    Length10.41mm
    Maximum Continuous Drain Current        8 A
    Maximum Drain Source Resistance0.85 Ω
    Maximum Drain Source Voltage500 V
    Maximum Gate Source Voltage±20 V
    Maximum Operating Temperature+150 °C
    Maximum Power Dissipation125 W
    Minimum Operating Temperature-55 °C
    Mounting TypeThrough Hole
    Number of Elements per Chip1
    Package TypeTO-220AB
    Pin Count3
    Typical Gate Charge @ Vgs63 nC V @ 10
    Typical Input Capacitance @ Vds1300 pF V @ 25
    Typical Turn-Off Delay Time49 ns
    Typical Turn-On Delay Time14 ns
    Width4.7mm
     For a Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.

    Please see our other items for a wide range of Electronic components.
