1 x STMicroelectronics STF21N65M5 N-channel MOSFET 17A 650V MDmesh M5 TO-220FP - STMicroelectronics
roll over the image to zoom in
£0.00
£5.99
RS 761-2770
Unit Type:
Unit
Location:
ES
STMicroelectronics

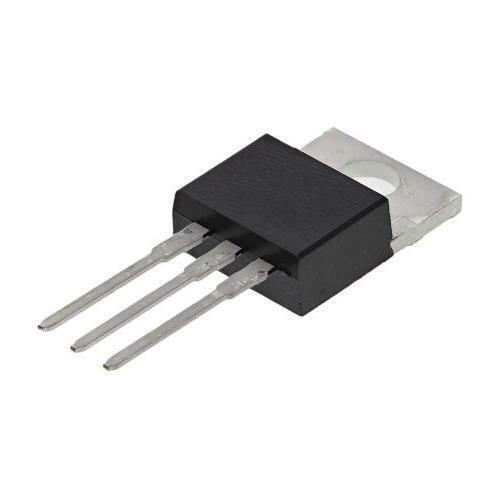

STMicroelectronics STF21N65M5 N-channel MOSFET, 17A 650V MDmesh M5, 3-Pin TO-220FP
- BMUK Part # :-761-2770
- BrandSTMicroelectronics
- Mfr Part No.STF21N65M5
- You will get 1 Transistor
Product Details
N-channel MDmesh™ M5 Series, STMicroelectronics
The MDmesh M5 power MOSFETs are optimised for high-power PFC and PWM topologies. Main features include a low on-state losses per silicon area combined with low gate charge. They are designed for energy-conscious, compact and reliable hard switching applications, such as solar power converters, power supplies for consumer products and electronic lighting controls.
MOSFET Transistors, STMicroelectronics
Specifications
Maximum Operating Temperature
+150 °C
Number of Elements per Chip
1
Length
10.4mm
Transistor Configuration
Single
Brand
STMicroelectronics
Maximum Continuous Drain Current
17 A
Package Type
TO-220FP
Maximum Power Dissipation
30 W
Series
MDmesh M5
Mounting Type
Through Hole
Width
4.6mm
Maximum Gate Threshold Voltage
5V
Height
16.4mm
Minimum Gate Threshold Voltage
3V
Maximum Drain Source Resistance
179 mΩ
Maximum Drain Source Voltage
650 V
Pin Count
3
Dimensions
10.4 x 4.6 x 16.4mm
Category
Power MOSFET
Typical Gate Charge @ Vgs
50 nC @ 10 V
Transistor Material
Si
Channel Mode
Enhancement
Typical Input Capacitance @ Vds
1950 pF@ 10 V
Channel Type
N
Maximum Gate Source Voltage
-25 V, +25 V
