1 x Texas Instruments LP2954AIT/NOPB, LDO Regulator, Adjustable 250mA, 1.23-29V - Texas Instruments
roll over the image to zoom in
£0.00
£7.49
RS 796-8105P
Unit Quantity:
1
Unit Type:
Unit
Location:
BRA-6H
Texas Instruments

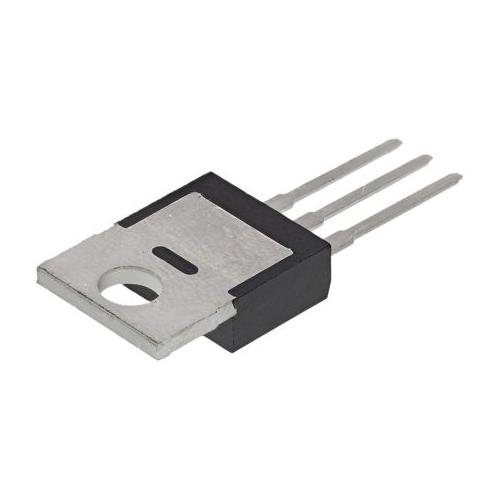

Texas Instruments LP2954AIT/NOPB, LDO Regulator, Adjustable 250mA, 1.23 → 29 V, TO-220 3-Pin
- BMUK Part # :-796-8105P
- BrandTexas Instruments
- Mfr. Part No.LP2954AIT/NOPB
- You will get 1 Voltage Regulator
Product Details
LDO (Low Dropout) Linear Voltage Regulators, 250mA, Texas Instruments
LDO (Low Dropout) Linear Voltage Regulators, Texas Instruments
A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators can operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.
Specifications
| Output Voltage | 1.23 → 29 V | |
| Output Type | Adjustable | |
| Package Type | TO-220 | |
| Maximum Output Current | 250mA | |
| Mounting Type | Surface Mount | |
| Minimum Input Voltage | -20 V | |
| Maximum Input Voltage | 30 V | |
| Pin Count | 3 | |
| Number of Outputs | 1 | |
| Polarity | Positive | |
| Quiescent Current | 90µA | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Dimensions | 5 x 4 x 1.75mm | |
| Load Regulation | 0.3 % | |
| Enable | Yes | |
| Reference Voltage | 1.27V | |
| Width | 4mm | |
| Height | 1.75mm | |
| Line Regulation | 0.4 % | |
| Length | 5mm |
