1950 x STMicroelectronics L78L08ABD13TR Voltage Regulator, 0.1A 8V, 8-Pin - STMicroelectronics

roll over the image to zoom in

£0.00
£182.99
RS 686-9511P
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1950
    Location:
    TS Shelf-Reel


    STMicroelectronics

    STMicroelectronics L78L08ABD13TR Linear Voltage Regulator, 100mA, 8 V 8-Pin, SOIC


    •
    • BMUK Part # :- 686-9511P
    •  BrandSTMicroelectronics
    • Mfr. Part No.L78L08ABD13TR
    •
    •
    •
    •
    • You will get approx 1950 ICs on a Reel

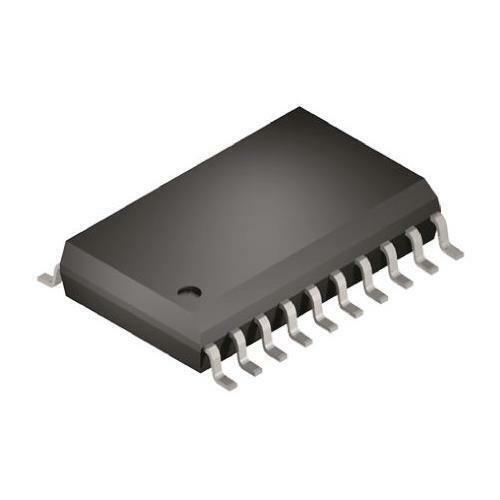

    Image representative of range



    Product Details

    Linear Voltage Regulators, 100mA, STMicroelectronics

    The L78L series of three-terminal positive regulators embed internal current limiting, and thermal shut-down. Providing an adequate heat sink, up to 100mA output current can be delivered.




    Linear Voltage Regulators, STMicroelectronics



    Specifications


    		Output Voltage8 V

    		Maximum Output Current100mA

    		Package TypeSOIC

    		Output TypeFixed

    		Mounting TypeSurface Mount

    		Maximum Input Voltage30 V

    		Pin Count8

    		Minimum Operating Temperature-40 °C

    		Maximum Operating Temperature+125 °C

    		Number of Outputs1

    		PolarityPositive

    		Length5mm

    		Line Regulation175 mV

    		Typical Dropout Voltage @ Current1.7 V@ 40 mA

    		Height1.65mm

    		Quiescent Current6mA

    		Width4mm

    		Load Regulation80 mV

    		Dimensions5 x 4 x 1.65mm
