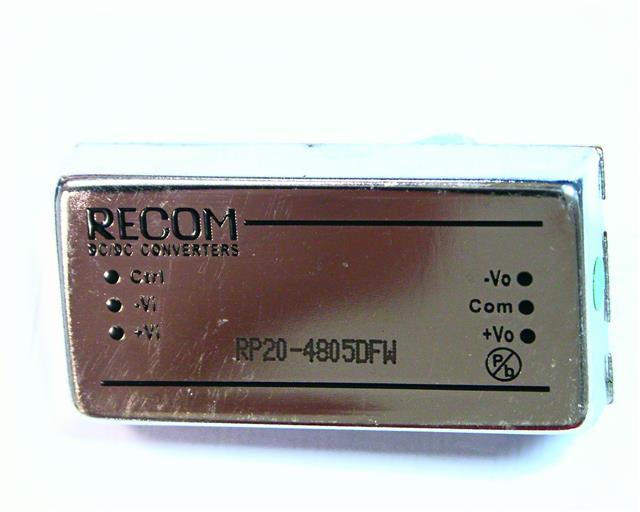

1 x Recom Isolated DC-DC Converter RP20-4805DFW, Vin 18-75V dc, Vout ±5V dc - Recom
roll over the image to zoom in
£0.00
£76.99
RS 169-055
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 11L
Recom
Recom Isolated DC-DC Converter, Vin 18 → 75 V dc, Vout ±5V dc, I/O isolation 1600V
- BMUK Part # :-169-055
- BrandRecom
- Mfr. Part No.RP20-4805DFW
-
- You will get 1 DC-DC Converter
Product Details
Recom 20W Single/Dual Output Regulated Isolated DC-DC Converter - RP20-FW Series
High power density
Ultra-wide 4:1 input voltage range
Regulated outputs
1.6kV input/output isolation
Pi input filter meets EN 55022 Class A/B with an external filter
Remote On/Off Control
Under voltage, over voltage (single), overload and short circuit protection
Shielded metal case with insulated baseplate
Industry-standard pin-out
| Connection data | ||
| Pin | Single Output | Dual Output |
| 1 | +V in | +V in |
| 2 | -V in | -V in |
| 3 | +V out | +V out |
| 4 | Trim | Common |
| 4 | -V out | -V out |
| 6 | Remote on/off | Remote on/off |
Note
Operating temperature is without de-rating.
Recom 20W to 60W
Specifications
| Output Voltage | ±5V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Input Voltage Nominal | 48 V dc | |
| Isolation Voltage | 1600V | |
| Output Current | ±2A | |
| Mounting Type | Through Hole | |
| Number of Outputs | 2 | |
| Efficiency | 82% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +105°C | |
| Load Regulation | ±1% | |
| Line Regulation | ±0.2% | |
| Series | RP20 FW | |
| Depth | 10.2mm | |
| Length | 25.4mm |
