1 x ON Semi MJ11015G PNP Darlington Transistor, 30A 120V HFE:200, 3-pin TO-204 - ON Semi

roll over the image to zoom in

£0.00
£8.99
RS 688-1502
Earn0
reward points

In stock: 67

Sorry! We're out of stock

Add To Your Wishlist
    Location:
    BRA 4A


    ON Semi

    ON Semi MJ11015G PNP Darlington Transistor, 30 A 120 V HFE:200, 3-pin TO-204

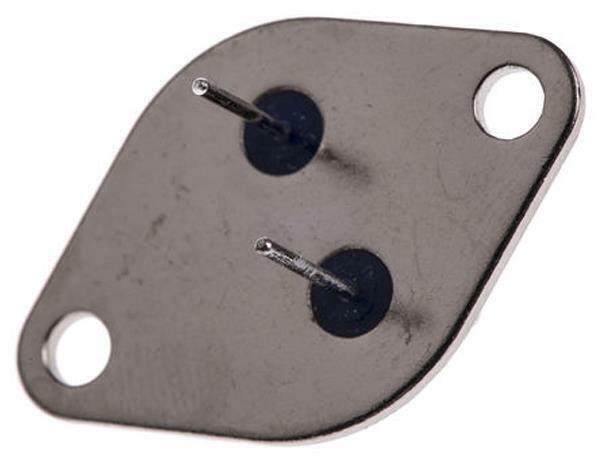

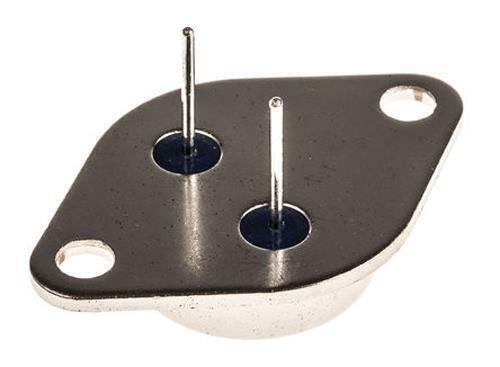

    You will get ONE Transistor in a TO-204(TO-3) Package,

    BrandON Semiconductor
  • Mfr. Part No.MJ11015G
    • ON Semiconductor
    ON Semi MJ11015G PNP Darlington Transistor, 30 A 120 V HFE:200, 3-pin TO-204



      Product Details

      PNP Darlington Transistors, ON Semiconductor

      Bipolar Power Transistors, ON Semiconductor

      Specifications

      ConfigurationSingle
      Dimensions39.37 x 26.67 x 8.51mm
      Height8.51mm
      Length39.37mm
      Maximum Base Emitter Saturation Voltage5 V
      Maximum Collector Base Voltage120 V
      Maximum Collector Emitter Saturation Voltage            4 V
      Maximum Collector Emitter Voltage120 V
      Maximum Continuous Collector Current30 A
      Maximum Emitter Base Voltage5 V
      Maximum Operating Temperature+200 °C
      Minimum DC Current Gain200
      Minimum Operating Temperature-55 °C
      Mounting TypeThrough Hole
      Number of Elements per Chip1
      Package TypeTO-204
      Pin Count3
      Transistor TypePNP
      Width26.67mm

      ​

      For a Specification PDF Please CLICK HERE
