Vishay Potentiometer With Knob P16 Series 1MΩ ±20% 0.12W ±150ppm/°C Linear Panel - Vishay
roll over the image to zoom in
£0.00
£20.99
RS 790-4413
Vishay

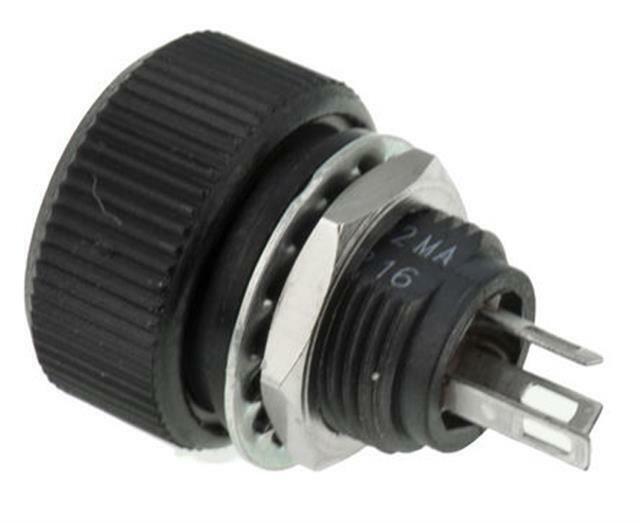

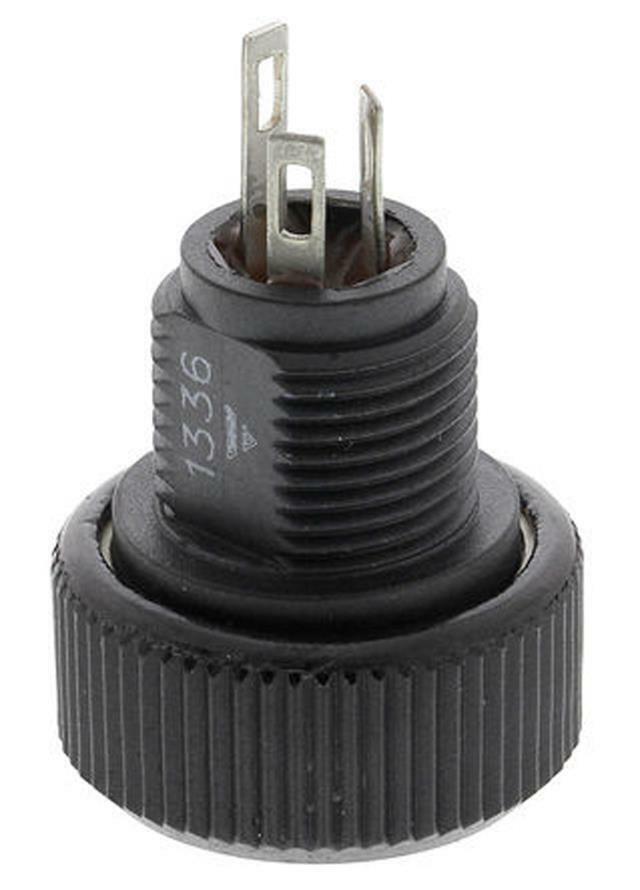

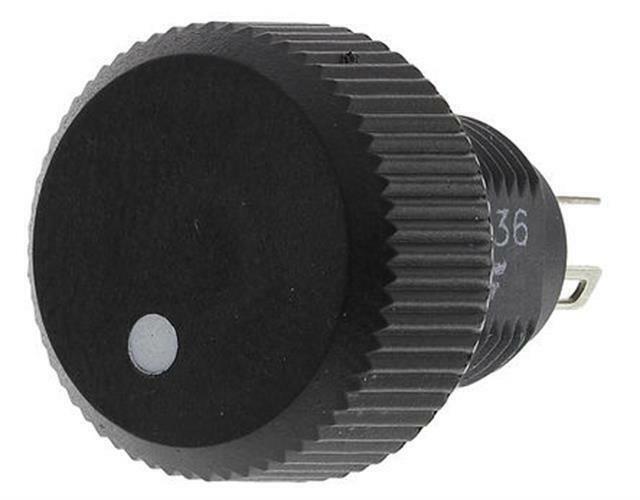

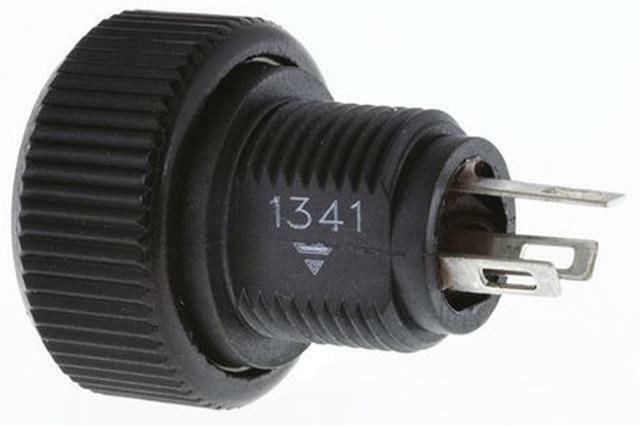

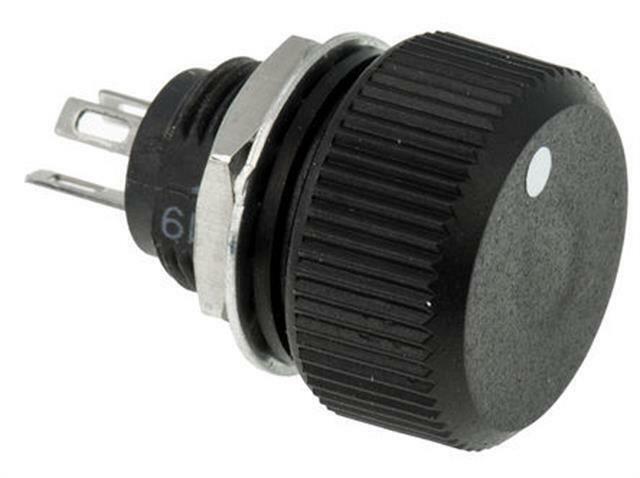

Vishay Potentiometer With Knob P16 Series 1MΩ ±20% 0.12W ±150ppm/°C, Linear, Panel Mount
- BMUK Part # :-790-4413
- BrandVishay
- Mfr. Part No.P16NP105MAB15
Product Details
16mm P16 Series

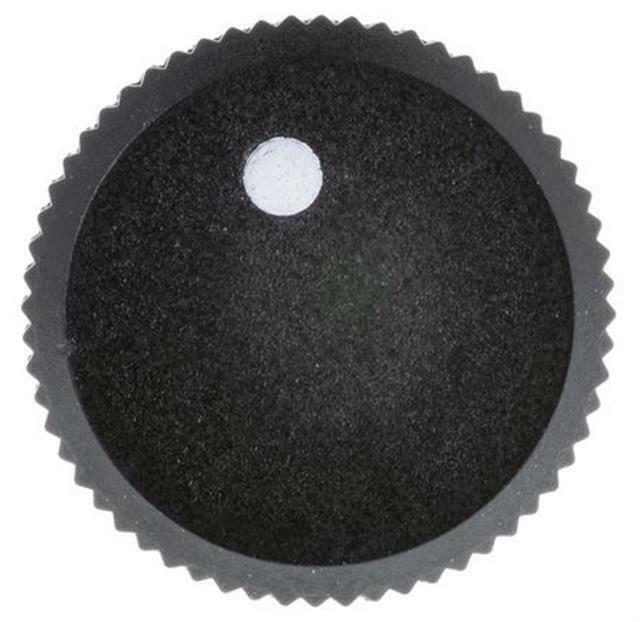

Unique design with integrated plastic (NP) or metal (NM) knob
Mounts directly onto panel
Minimum clearance required behind panel
Hermetically sealed and panel sealed
Tolerance ±20%
Power rating 0.12W
| Temperature coefficient: | ±100 ppm/°C |
| Contact resistance variation | 3% or 3Ω (whichever is greater) |
| End resistance | 1Ω typical |
| Rotation (nom.) | 270° electrical 300° mechanical |
| Operating Temperature | -55°C → +125°C |

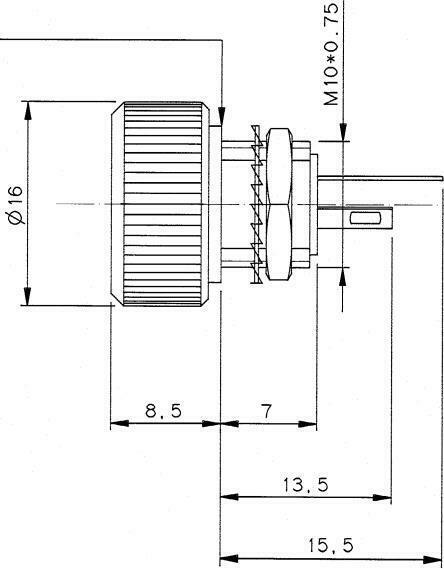

| Dimensions: | |
| Body | Ø16mm (knob) L. 24mm (total) |
| Mounting bush | Ø9.5mm L. 7mm |
| Panel cut out | Ø10mm with 8.1mm double flat |
Supplied with
Nut, lock washer and sealing ring.
Cermet
Specifications
| Maximum Resistance | 1MΩ | |
| Number of Turns | 1 | |
| Potentiometer Type | Linear | |
| Mounting Type | Panel Mount | |
| Mounting Hole Diameter | 10mm | |
| Power Rating | 0.12W | |
| Termination Style | Solder Lug | |
| Tolerance | ±20% | |
| Series | P16 | |
| Length | 16mm | |
| Dimensions | 16 Dia. x 16mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 16mm | |
| Temperature Coefficient | ±150ppm/°C | |
| Maximum Operating Temperature | +85°C |
For a Specification PDF Please CLICK HERE
