Vishay 33000uF 40V DC Aluminium Electrolytic Capacitor 10000h MIG Welding PSU - Vishay
roll over the image to zoom in
£0.00
£52.99
RS 683-2018
Type:
Electrolytic Capacitor
Unit Quantity:
1
Unit Type:
Unit
Item Height:
80mm
Capacitance Rating:
33000 uF
Tolerance Rating:
±20 %
Termination Style:
Screw
Item Diameter:
50mm
Capacitor Construction:
Aluminium Electrolytic (Polarised)
Location:
TSB-11C-B1 + ?
Vishay

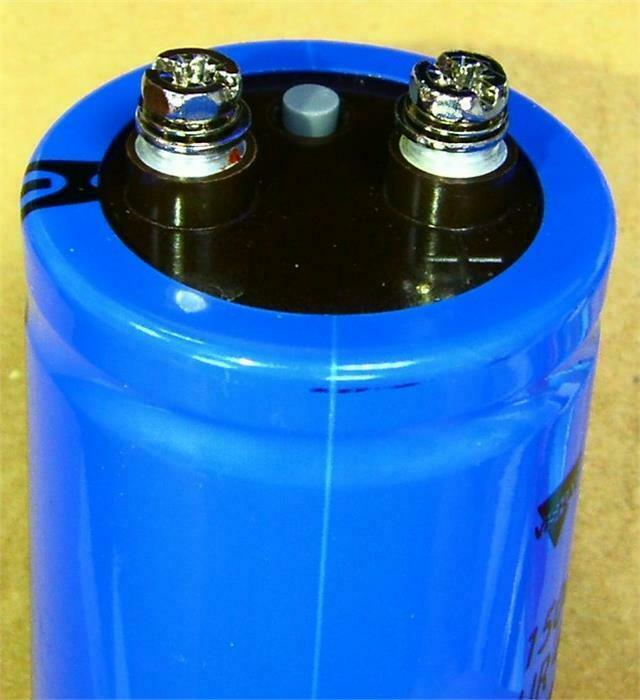

Vishay 33000uF 40V DC Aluminium Electrolytic Capacitor 10000h MIG Welding PSU, 101 PHR-ST Series 50 (Dia.) x 80mm
You will get ONE capacitor with connecting screws
Features:
- Long useful life: 10 000 h to 15 000 h at +85 °C
- Polarized aluminum electrolytic capacitors, non-solid electrolyte
- Large types, cylindrical aluminum case, insulated with a blue sleeve
- Pressure relief in the sealing
- Low ESR
Applications:
- Buffering and filtering
- Motor drives, inverters, UPS, and traction systems
- Pulsed power supplies
- Computer power supplies
Specifications:
