TIP2955 PNP Bipolar Transistor, 15 A 60 V 90W, TO-218 Audio Amp Power Supply - Unbranded/Generic
roll over the image to zoom in
£0.00
£7.90
Unbranded/Generic

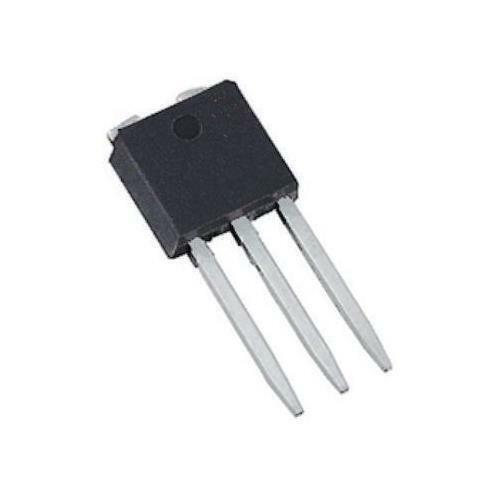

STMicroelectronics TIP2955 PNP Bipolar Transistor, 15 A 60 V 90W, 3-Pin TO-218
The TIP2955 is a silicon Epitaxial-Base Planar PNP transistor mountend in TO-218 plasticpackage. It is intented for power switching circuits, series and shunt regulators, output
stages and hi-fi amplifiers.
Available in Quantities of 2, 5 and 10.
The TIP2955 is a silicon Epitaxial-Base Planar PNP transistor mountend in TO-218 plastic
package. It is intented for power switching circuits, series and shunt regulators, output
stages and hi-fi amplifiers.
Specification:
| Bipolar Power | ||
| Configuration | Single | |
| Dimensions | 20.15 x 15.75 x 5.15mm | |
| Height | 20.15mm | |
| Length | 15.75mm | |
| Maximum Collector Base Voltage | 100 V | |
| Maximum Collector Emitter Saturation Voltage | 3 V | |
| Maximum Collector Emitter Voltage | 60 V | |
| Maximum DC Collector Current | 15 A | |
| Maximum Operating Frequency | 3 MHz | |
| Maximum Operating Temperature | +150 °C | |
| Maximum Power Dissipation | 90 W | |
| Minimum DC Current Gain | 5 | |
| Minimum Operating Temperature | -65 °C | |
| Mounting Type | Through Hole | |
| Number of Elements per Chip | 1 | |
| Package Type | TO-218 | |
| Pin Count | 3 | |
| Transistor Type | PNP | |
| Width | 5.15mm |
We also stock the matching NPN version of this transistor, the TIP3055, See our other items
