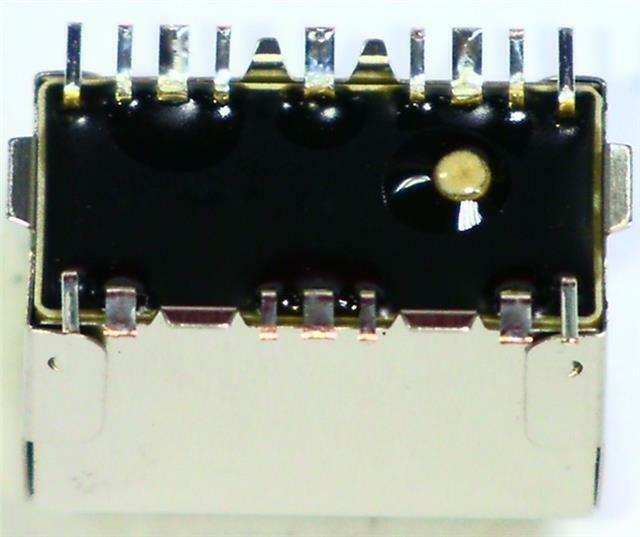

Single Pole Change Over HF Relay, Frequency range DC to 6GHz, 50Ω Bistable 12V - TE Connectivity

roll over the image to zoom in

£0.00
£19.99
RS 791-7598
Earn0
reward points

In stock: 249

Sorry! We're out of stock

Add To Your Wishlist


    TE Connectivity

    1 Pole Change Over Relay, Frequency range DC to 6GHz, Impedance 50Ω Surface Mount 12V DC Bistable
    RRP on these is £24+VAT, BMUK Price just £19.99 All in !

    These will come on SM Tape, multi Buys will come on one legnth of tape
    TE Connectivity
    1CO Surface Mount, High Frequency Relay 12V dc
    Image representative of range
    • was_ll_uk.gif
    Product Details

    High Frequency HF6 Series

    High frequency relay for 50 Ohm systems. 1 pole CO contacts SMT configuration with 12V DC bistable latching coils,

    Frequency range DC to 6GHz
    140mW coil consumption
    Dimensions 16mm (L) x 7.6mm (W) x 10mm (H)

    Surface Mount Relays

    Specifications

    Coil Power140mW
    Coil Resistance1028 Ω
    Coil Voltage12V dc
    Contact Configuration1CO
    Contact MaterialGold Plated Silver
    Depth7.5mm
    Dimensions14.9 x 7.5 x 9.6mm
    Height9.6mm
    Length14.9mm
    Life10000000 (Mechanical) operations
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-55°C
    Mounting TypeSurface Mount
    Operating Temperature Range-55 → +85°C
    Terminal TypeSolder


    Fora Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.
