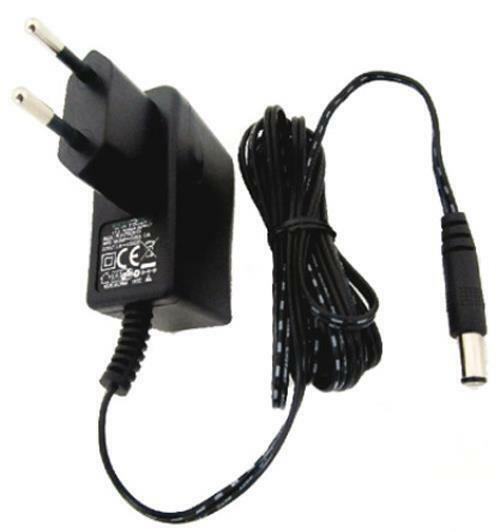

Plug In Switch Mode 18V 1.11A DC Regulated Power Supply ErP Comp 20W EuroPlug - RS Pro
roll over the image to zoom in
£0.00
£31.30
RS 726-2870
RS Pro
Plug In Switch Mode 18V 1.11A DC Power Supply, ErP Compliant, 20W, Type C - 2 Pin EuroPlug
Product Details
RS Plug-in Switch Mode Power Supplies - ECP Euro Series
Energy saving external switch mode plug-top power supplies that are compact and lightweight. These external switch mode plug-top power supplies are Class II double insulated and ErP level V compliant. UK versions are also available see stock number 726-2690 typically.
Very low No-load power consumption
Regulated output
ErP level V compliant
Class II double insulated
Short circuit, overload voltage and overload current protection
1.2 metre (approx) output lead with 2.1x5.5x9.5mm centre positive output connector
EMC compliance to EN 55022 Class B
RS, Professionally Approved Products, gives you professional quality parts across all product categories. Our range has been testified by engineers as giving comparable quality to that of the leading brands without paying a premium price.
Note
Conforms to Energy-related Product Directive 2009/125/EC,MTBF to MIL-HDBK-217F (25°C)
Switch Mode - RS
| Cable Length | 1.2m | |
| Depth | 56.3mm | |
| Efficiency | 86% | |
| ErP Compliance | Yes | |
| Input Voltage | 90 → 264V ac | |
| Length | 73mm | |
| Line Regulation | ±1% | |
| Load Regulation | ±5% | |
| Maximum Temperature | +40°C | |
| Minimum Temperature | 0°C | |
| MTBF | 100000h | |
| Number of Outputs | 1 | |
| Output Connector | 2.1 x 5.5 x 9.5 mm Centre Positive | |
| Output Current | 1.11A | |
| Output Voltage | 18V dc | |
| Plug Type | 2-Pin Type C - EuroPlug | |
| Power Rating | 20W | |
| Ripple And Noise | ±10% | |
| Type | Switch Mode | |
| Weight | 140g | |
| Width | 54mm |
