PIC 17C43-16/P 8 bit PIC Microcontroller 16MHz 4K x 16 words EPROM 454 B RAM - Microchip
roll over the image to zoom in
£0.00
£7.99
PIC17C43 RS 328-3882
Microchip

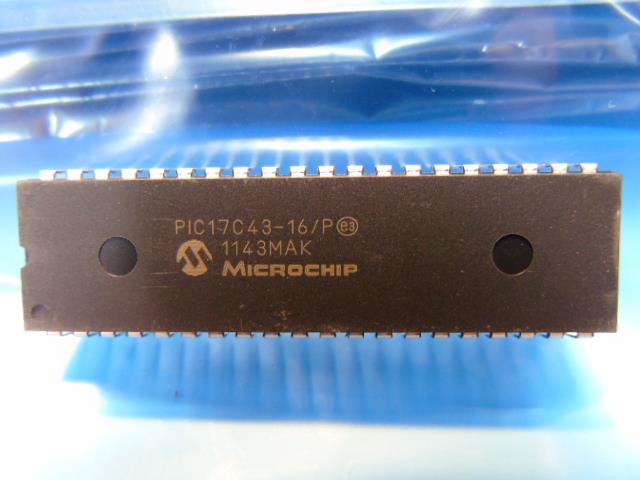

PIC17C43-16/P, 8 bit PIC Microcontroller 16MHz 4K x 16 words EPROM, 454 B RAM, 40-Pin PDIP
You are looking at 1 of PIC17C43 in a PDIP 40 Package, .
Specifications
Specifications
| Data Bus Width | 8bit | |
| Device Core | PIC | |
| Dimensions | 52.197 x 13.97 x 4.064mm | |
| Family Name | PIC17 | |
| Height | 4.064mm | |
| Instruction Set Architecture | RISC | |
| Length | 52.197mm | |
| Maximum Frequency | 16MHz | |
| Maximum Number of CAN Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Maximum Number of I2C Channels | 0 | |
| Maximum Number of LIN Channels | 0 | |
| Maximum Number of PCI Channels | 0 | |
| Maximum Number of SPI Channels | 0 | |
| Maximum Number of UART Channels | 0 | |
| Maximum Number of USART Channels | 1 | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Mounting Type | Through Hole | |
| Number of PWM Units | 2 | |
| Number of Timers | 4 | |
| Package Type | PDIP | |
| Pin Count | 40 | |
| Program Memory Size | 4K x 16 words | |
| Program Memory Type | EPROM | |
| Pulse Width Modulation | 2(10 bit) | |
| PWM Resolution | 10bit | |
| RAM Size | 454 B | |
| Timer Resolution | 16 bit, 8 bit | |
| Timers | 2 x 16 bit, 2 x 8 bit | |
| Typical Operating Supply Voltage | 4.5 → 5.5 V | |
| USB Channels | 0 | |
| Width | 13.97mm |
