2 x PIC16F628A-I/P 8 bit PIC Microcontroller 20MHz 2048x14 W Flash 224B Ram - Microchip
roll over the image to zoom in
£0.00
£11.99
RS 623-0291
Microchip
PIC16F628A-I/P, 8 bit PIC Microcontroller 20MHz 128 B, 2048 x 14 words Flash, 224 B RAM, 18-Pin PDIP

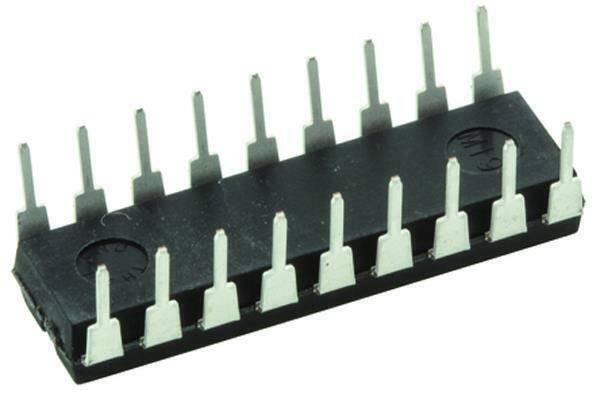

You are looking at 2 of PIC16F628A-I/P in an 18 Pin PDIP Package,
Specifications
| Data Bus Width | 8bit | |
| Device Core | PIC | |
| Dimensions | 0.92 x 0.28 x 0.195in | |
| Family Name | PIC16 | |
| Height | 0.195in | |
| Instruction Set Architecture | RISC | |
| Length | 0.92in | |
| Maximum Frequency | 20MHz | |
| Maximum Number of CAN Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Maximum Number of I2C Channels | 0 | |
| Maximum Number of LIN Channels | 0 | |
| Maximum Number of PCI Channels | 0 | |
| Maximum Number of SPI Channels | 0 | |
| Maximum Number of UART Channels | 0 | |
| Maximum Number of USART Channels | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Mounting Type | Through Hole | |
| Number of PWM Units | 1 | |
| Number of Timers | 3 | |
| Package Type | PDIP | |
| Pin Count | 18 | |
| Program Memory Size | 128 B, 2048 x 14 words | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 1(10 bit) (CCP) | |
| PWM Resolution | 10bit | |
| RAM Size | 224 B | |
| Timer Resolution | 16 bit, 8 bit | |
| Timers | 1 x 16 bit, 2 x 8 bit | |
| Typical Operating Supply Voltage | 3 → 5.5 V | |
| USB Channels | 0 | |
| Width | 0.28in |
