1x PIC16F887-I/P 8 bit PIC Microcontroller 20MHz 256 B 8192 x 14W Flash 368B RAM - Microchip
roll over the image to zoom in
£0.00
£15.99
RS 399-410
Unit Quantity:
1
Unit Type:
Unit
Mounting Style:
Through-Hole
Number of Pins:
40
Location:
ES
Microchip
PIC16F887-I/P, 8 bit PIC Microcontroller 20MHz 256 B, 8192 x 14 words Flash, 368 B RAM, I2C 40-Pin PDIP

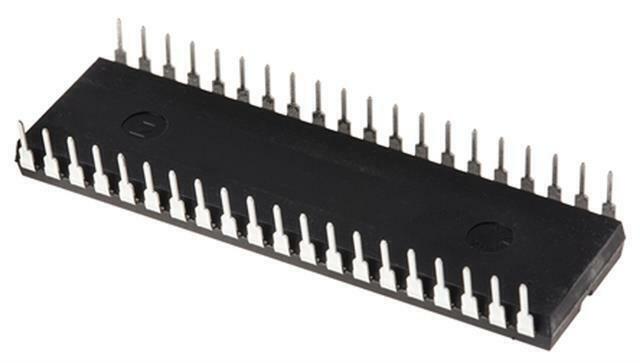

You are looking at 1 of PIC16F887-I/P in a 40 Pin 0.6" PDIP Package,
Specifications
| ADC Channels | 14 | |
| ADC Resolution | 10bit | |
| ADCs | 14 x 10 bit | |
| Data Bus Width | 8bit | |
| Device Core | PIC | |
| Dimensions | 2.095 x 0.58 x 0.195in | |
| Family Name | PIC16 | |
| Height | 0.195in | |
| Instruction Set Architecture | RISC | |
| Length | 2.095in | |
| Maximum Frequency | 20MHz | |
| Maximum Number of CAN Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Maximum Number of I2C Channels | 1 | |
| Maximum Number of LIN Channels | 0 | |
| Maximum Number of PCI Channels | 0 | |
| Maximum Number of SPI Channels | 1 | |
| Maximum Number of UART Channels | 0 | |
| Maximum Number of USART Channels | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Mounting Type | Through Hole | |
| Number of ADC Units | 1 | |
| Number of PWM Units | 2 | |
| Number of Timers | 3 | |
| Package Type | PDIP | |
| Pin Count | 40 | |
| Program Memory Size | 256 B, 8192 x 14 words | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 1(10 bit) (CCP), 1(10 bit) (ECCP) | |
| PWM Resolution | 10bit | |
| RAM Size | 368 B | |
| Timer Resolution | 16 bit, 8 bit | |
| Timers | 1 x 16 bit, 2 x 8 bit | |
| Typical Operating Supply Voltage | 2 → 5.5 V | |
| USB Channels | 0 | |
| Width | 0.58in |
