PIC16F627-04/SO, 8 bit PIC Microcontroller 4MHz 1024 x 14 words FL, 128 x 8 RAM - Microchip
roll over the image to zoom in
£0.00
£4.99
PIC16F627 RS379-2847
Unit Quantity:
1
Unit Type:
Unit
Location:
3D Print - PIC Bag
Microchip
PIC16F627-04/SO, 8 bit PIC Microcontroller 4MHz 1024 x 14 words, 128 x 8 words Flash, 224 B RAM,

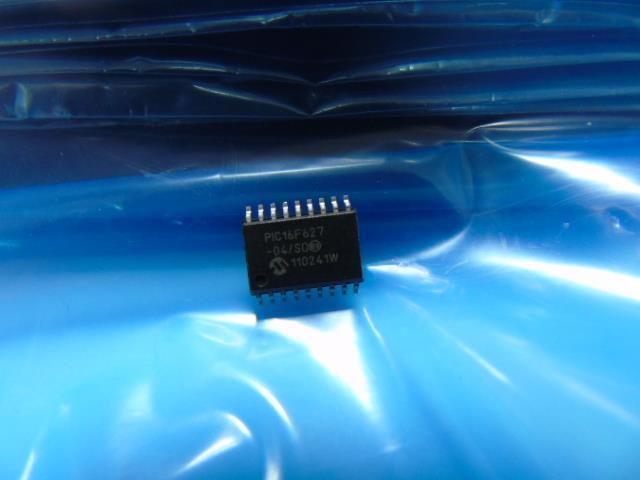

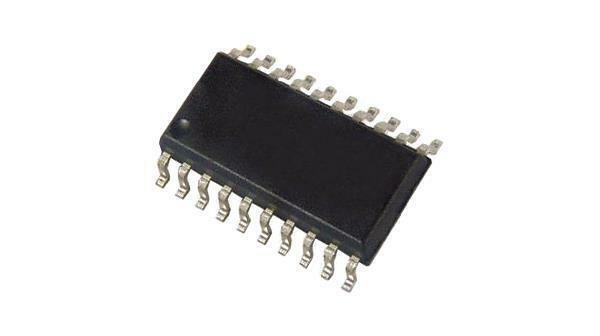

You are looking at 1 of PIC16F627-04/SO in a 18 Pin SOIC Package, .
Specifications
Specifications
Shop Categories  NEW RELEASES FEATURED PRODUCTS | PIC16F627-04/SO, 8 bit PIC Microcontroller 4MHz 1024 x 14 words FL, 128 x 8 RAM
|    |
| Data Bus Width | 8bit | |
| Device Core | PIC | |
| Dimensions | 11.73 x 7.59 x 2.39mm | |
| Family Name | PIC16 | |
| Height | 2.39mm | |
| Instruction Set Architecture | RISC | |
| Length | 11.73mm | |
| Maximum Frequency | 4MHz | |
| Maximum Number of CAN Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Maximum Number of I2C Channels | 0 | |
| Maximum Number of LIN Channels | 0 | |
| Maximum Number of PCI Channels | 0 | |
| Maximum Number of SPI Channels | 0 | |
| Maximum Number of UART Channels | 0 | |
| Maximum Number of USART Channels | 1 | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Mounting Type | Surface Mount | |
| Number of PWM Units | 1 | |
| Number of Timers | 3 | |
| Package Type | SOIC | |
| Pin Count | 18 | |
| Program Memory Size | 1024 x 14 words, 128 x 8 words | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 1(16 bit) (CCP) | |
| PWM Resolution | 16bit | |
| RAM Size | 224 B | |
| Timer Resolution | 8bit | |
| Timers | 3 x 8 bit | |
| Typical Operating Supply Voltage | 3 → 5.5 V | |
| USB Channels | 0 | |
| Width | 7.59mm |
