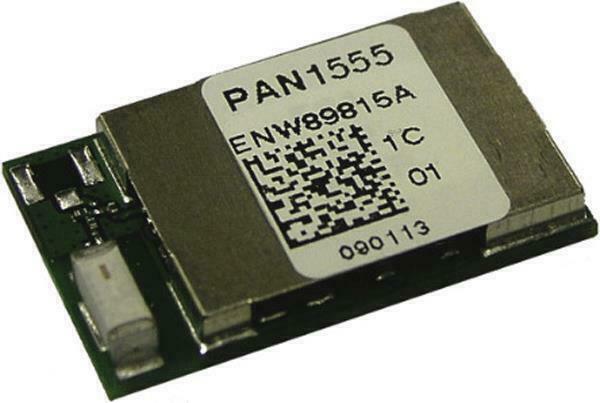

Modem Modules 3.0

Bluetooth system solutions enabling integrated Bluetooth connection for your product. These modules utilise the simple AT command set for ease of design via the UART or USB peripheral interface.

General

Supported Profiles: RFCOMM, SPP device A and B
Complete Bluetooth 3.0 + EDR solution
Ultra low power design
No external components except antenna where not included required
On-module voltage regulator. External supply 3.0-3.6V
Reference clock included
Low power clock from internal oscillator or external low power clock
High sensitivity design (-86 dBm typ.)

Interfaces

3.25 MBaud UART, USB, I2C and SPI Interface
18 GPIO’s for individual usage for your embedded software
3 Channel ADC and 1 Channel DAC
Cortex-M3 ST32F103 core for embedded profiles or application software
JTAG for boundary scan and debug

Cut the Cable ™
