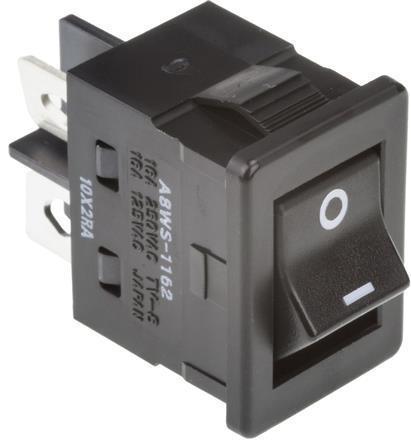

Omron Rocker Switch, A8WS-1162 SPST On/Off, 16 Amp 240 Volts AC Heavy Duty - OMRON
roll over the image to zoom in
£0.00
£10.99
RS 707-3339
Type:
Rocker Switch
Material:
ABS/Plastic
Colour:
Black
Current Type:
AC
Current Rating:
16A
Features:
Heavy Duty
Operation Method:
On/Off
Maximum Amperage:
16A
Contact Material:
Silver Alloy
Location:
ES - 10F
OMRON
Omron A8WS-1162 Black SPST Rocker Switch, On-Off, 16 Amps 240 Volts AC
You Will Receive 1 Switch.
Shop Categories  NEW RELEASES FEATURED PRODUCTS | Omron Rocker Switch, A8WS-1162 SPST On/Off, 16 Amp 240 Volts AC Heavy Duty
|    |
| Black | ||
| Contact Configuration | SPST | ||
| Contact Current Rating | 16 A@ 250 V ac | ||
| Legend Text | I-O | ||
| Maximum Operating Temperature | +55°C | ||
| Mechanical Life | 50000 Operations | ||
| Minimum Operating Temperature | -25°C | ||
| Mounting Type | Panel Mount | ||
| Panel Cut Out Height | 14.8mm | ||
| Panel Cut Out Size | 14.8 x 23.2mm | ||
| Panel Cut Out Width | 23.2mm | ||
| Switch Operation | On-Off | ||
| Terminal Type | Solder, Tab |
For a Specification PDF Please CLICK HERE
