2 x Astrosyn PJJQ26ZA-A NEMA type 23 Stepper Motors 200 Step 4V 1.1A 3D Printer - Astrosyn
roll over the image to zoom in
£0.00
£32.99
Astrosyn PJJQ26ZA-A
Unit Quantity:
2
Unit Type:
Unit
Full Step Angle:
1.8 Degrees
Astrosyn

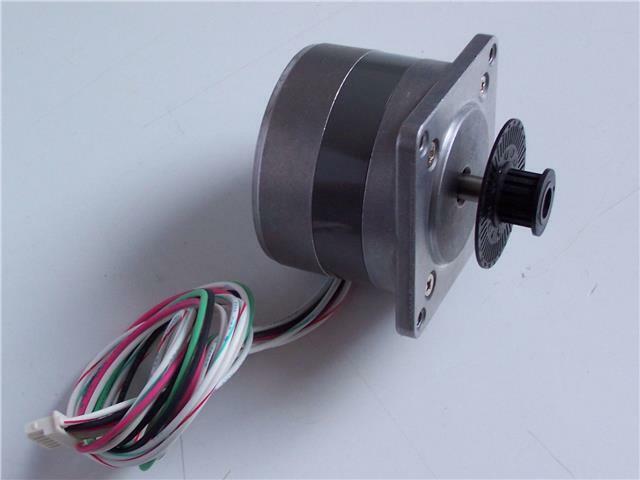

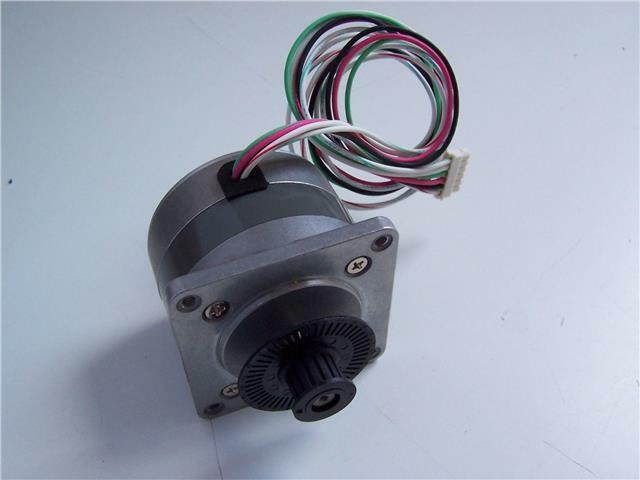

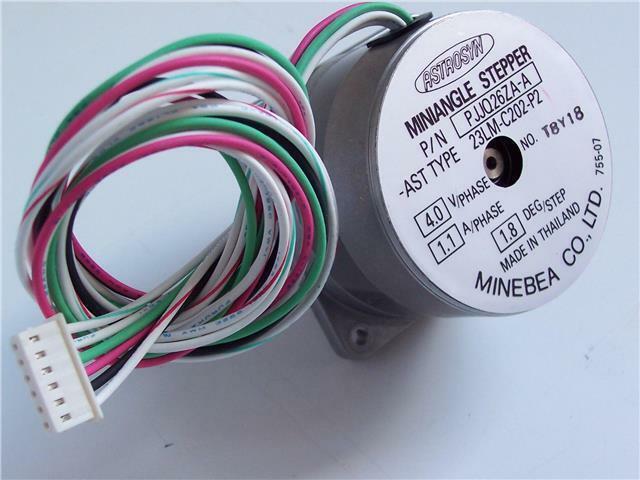

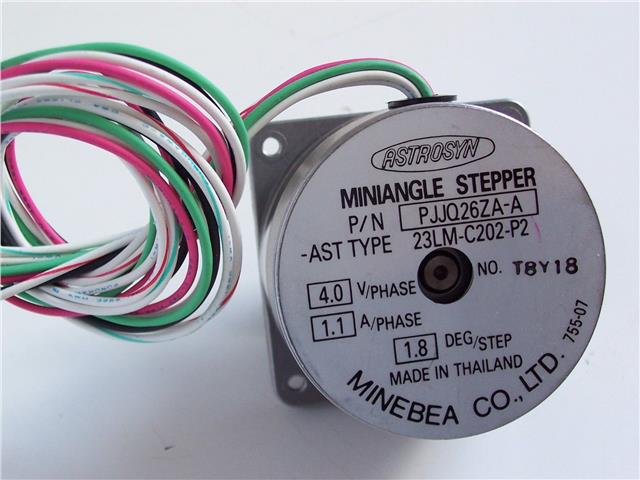

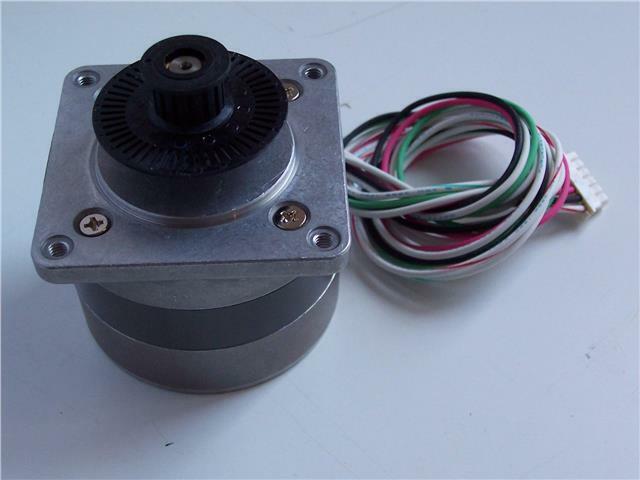

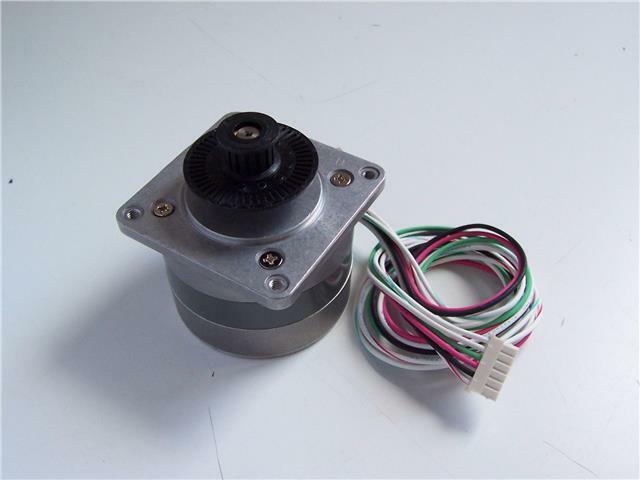

You are looking at a powerful NEMA-23 stepper motor,
- Nice Quality 200 Step Motor with Ball Bearings front and rear
- 18 mm Long Shaft 6.35 mm (0.25") diameter

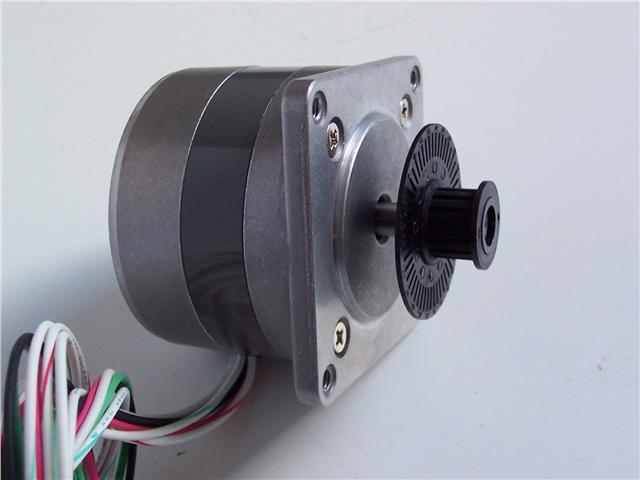

- Fitted with Pulley for Toothed Belt and Slotted Opto position sensor Disk
- Pulley easily removed
- 500mm long high temperature connecting leads fitted with 6 pin 0.1" pitch connector
- 6 wires allow universal Uni-polar and Bi-polar operation
- Suitable for all drivers - Arduino/Pi/Chopper/DC drive
- Low inductance windings allow high step rates with suitable drivers
- Runs from any normal voltage from 2V upwards providing current is limited to 1.1A maximum per phase
- 57 mm Square Flange
- 56.65 mm Body Diameter
- 4 M3 Fixing holes on 48 mm centres
- 400g weight
- Ideal for plotters, printers, robotics etc.
- Pulley size for toothed belt: 13mm diameter over teeth, 15 teeth at approx 3mm pitch
- 9mm wide between flanges.
- Large Quantity Available if designing into a new project
These motors are Brand New and have been stored in manufacturers original trays wrapped in polythene with drying crystals.
The motors run beautifully with lower current than the maximum 1.1A.
There are two standard centre tapped windings and so the motors can be run as two phase bi-polar, or 4 phase unipolar modes -
These are the normal most commonly used connection methods and so will work with all standard driver boards.
Item specifics
| Condition: | New: A brand-new, unused, unopened and undamaged item in original retail packaging | Brand: | Astrosyn |
| Shaft Diameter: | 6.35 mm/0.25 inches | Nominal Rated Input Voltage: | 5/12/24V |
| Protection Against Solids: | Dust Protected, Most Wires and Screws, Tools and Thick Wire | Actual Rated Input Voltage: | 3 - 24 |
| Wiring Configuration: | Bi-polar or Uni-polar 6 Wire Connections | Current Type: | Pulsed |
| Full Load Amps: | 1.1 | Protection Against Liquids: | Not Protected |
| Full Step Angle: | 1.8 Degrees | Rated Current per Phase: | 1.1 |
| Country/Region of Manufacture: | Thailand | Resistance per Phase: | 3.6 Ohms |
| MPN: | PJJQ26ZA-A |
