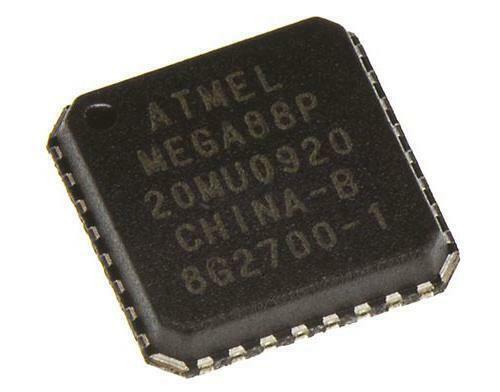

1 x Atmel ATMEGA88P-20MU 8bit AVR Microcontroller 20MHz 512 B, 8kB Flash MLF-32 - Atmel
roll over the image to zoom in
£0.00
£6.99
RS 696-3058
Unit Quantity:
1
Unit Type:
Unit
Location:
TS BRA RIGHT BOTTOM
Atmel
Atmel ATMEGA88P-20MU, 8bit AVR Microcontroller, 20MHz, 512 B, 8 kB Flash, 32-Pin MLF
- BMUK Part # :-696-3058
- BrandAtmel
- Mfr. Part No.ATMEGA88P-20MU,
- You will get ONE IC
-
Product Details
8-Bit PicoPower megaAVR Family Microcontrollers, Atmel
This range of megaAVR microcontrollers features picoPower technology — perfect for energy saving. They offer generous programs and data memories with performance of up to 20 MIPS.
Features & Benefits of picoPower megaAVR microcontrollers
•On-chip Flash
•SRAM
•Internal EEPROM
•SPI
•TWI (I²C)
•USART, USB, CAN & LIN interfaces
•Watchdog timer
•Precision oscillator
•GPIO pins
•ADC
•DAC
•Built-in temperature sensor
•Internal voltage reference
•Brown-out detector
AVR Microcontrollers, Atmel
Specifications
| Family Name | ATmega | |
| Package Type | MLF | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8 kB, 512 B | |
| Maximum Frequency | 20MHz | |
| RAM Size | 1 kB | |
| Number of PWM Units | 3 | |
| ADC Channels | 8 | |
| Number of SPI Channels | 2 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
| PWM Resolution | 8-bit, 16-bit | |
| Program Memory Type | Flash | |
| Width | 5.1mm | |
| ADCs | 8 x 10-bit | |
| Number of USART Channels | 1 | |
| Number of ADC Units | 1 | |
| PWM Channels | 6 | |
| Number of I2C Channels | 1 | |
| Height | 1mm | |
| Maximum Operating Temperature | +85 °C | |
| Pulse Width Modulation | 2(6 x 8 bit), 6 x 16 bit | |
| Length | 5.1mm | |
| Dimensions | 5.1 x 5.1 x 1mm | |
| Timers | 1 x 16 bit, 2 x 8 bit | |
| Timer Resolution | 8-bit, 16-bit | |
| ADC Resolution | 10bit | |
| Number of Timers | 3 |
