1 x Analog AD8343ARUZ, Up-Down Converter & Mixer Circuit 425MHz 4.5-5.5V 14-Pin - Analog Devices

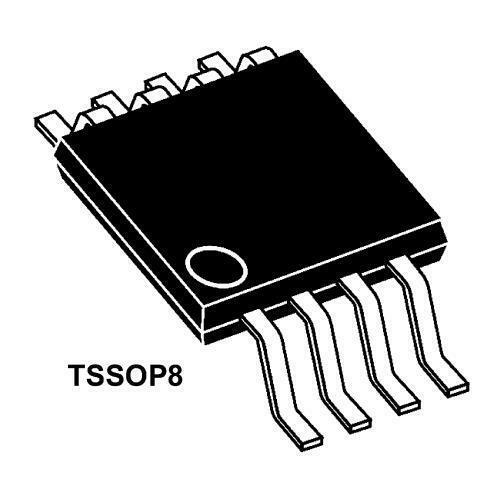

roll over the image to zoom in
£0.00
£8.99
RS 709-5086
Unit Quantity:
1
Unit Type:
Unit
Location:
BRA5G
Analog Devices
Analog Devices AD8343ARUZ, Up-Down Converter & Mixer Circuit 425MHz Gain=7 dB 4.5 → 5.5 V 14-Pin TSSOP
- BMUK Part # : 709-5086
- BrandAnalog Devices
- Mfr. Part No.AD8343ARUZ
-
- You will get 1 IC
Product Details
Single, Double & Triple Balanced Mixers, Analog Devices
RF & Microwave, Analog Devices
Specifications
| Maximum Power Gain | 7 dB | |
| Maximum Input Frequency | 2400MHz | |
| Maximum Output Frequency | 425MHz | |
| Maximum Power Dissipation | 320 mW | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Dimensions | 5 x 4.4 x 1mm | |
| Length | 5mm | |
| Width | 4.4mm | |
| Height | 1mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Minimum Operating Temperature | -40 °C |
