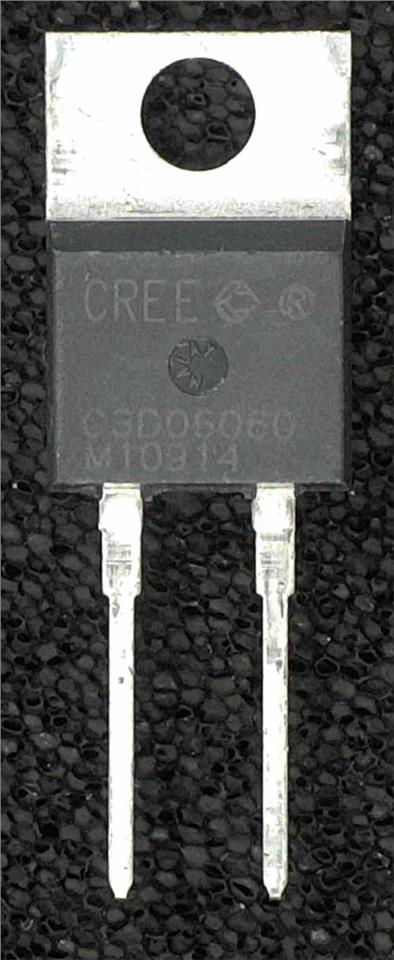

1 x Cree C3D06060A Silicon Carbide Single Schottky Diode 600V 6A TO-220 2-Pin - Cree
roll over the image to zoom in
£0.00
£5.99
RS 702-7462
Unit Quantity:
1
Unit Type:
Unit
Location:
TS BRA-10L
Cree
Cree Wolfspeed C3D06060A SiC Schottky Diode, 600V 6A, 2-Pin TO-220
- BMUK Part # :-702-7462
- BrandCree
- Mfr. Part No.C3D06060A
- You will get 1 Diode
Product Details
Z-Rec™ Silicon Carbide Schottky Diodes, Wolfspeed
A range of Wolfspeed SiC (Silicon Carbide) Schottky diodes offering significant improvements over standard Schottky barrier diodes. SiC diodes provide a much higher breakdown field strength and greater thermal conductivity coupled with a significant reduction in power-loss at high switching frequencies. Sic diodes are the perfect choice in high efficiency, high-voltage applications such as switch-mode power supplies and high-speed inverters.
• 600, 650, 1200 and 1700 Voltage ratings
• Zero reverse recovery current and forward recovery voltage
• Temperature-independent switching behaviour
• Extremely fast switching times with minimal losses
• Positive temperature coefficient forward voltage
• Devices can be paralleled without thermal runaway
• Reduction in heatsink requirements
• Optimized for PFC boost diode applications
Diodes and Rectifiers, Cree Wolfspeed
Specifications
| Maximum Continuous Forward Current | 6A | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Through Hole | |
| Package Type | TO-220 | |
| Diode Type | SiC Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Drop | 2.4V | |
| Length | 10.41mm | |
| Width | 4.7mm | |
| Height | 15.62mm | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +175 °C | |
| Peak Reverse Current | 200µA | |
| Peak Non-Repetitive Forward Surge Current | 200A | |
| Dimensions | 10.41 x 4.7 x 15.62mm |
To view the datasheet please Click Here
