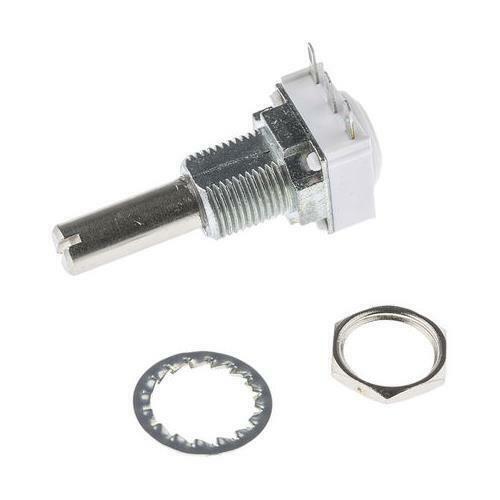

1 x Bourns 3547S-1AA-102A Wirewound Potentiometer 6.35 mm Dia. Shaft 3-Turn, 1kΩ - Bourns

roll over the image to zoom in

£0.00
£24.99
RS 692-8474
Earn0
reward points

In stock: 23

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS 12i


    Bourns

    Bourns 3547 Series Wirewound Potentiometer with a 6.35 mm Dia. Shaft 3-Turn, 1kΩ, ±3%, 1W, ±50ppm/°C, Panel Mount


    • BMUK Part # :-692-8474
    • BrandBourns
    • Mfr. Part No.3547S-1AA-102A
    •  Bourns
    •
    • You will get 1 Potentiometer

    Bourns 3547 Series Wirewound Potentiometer with a 6.35 mm Dia. Shaft 3-Turn, 1kΩ, ±3%, 1W, ±50ppm/°C, Panel Mount






    Product Details

    22mm 3 Turn 3547 Series

    Wirewound elements
    High rotational life
    Suitable for use under side load
    Designed for HMI and MMI applications


    Precision - Multi-Turn and Servo

    Specifications


    		Maximum Resistance1 kΩ

    		Number of Turns3

    		Potentiometer TypeLinear

    		Mounting TypePanel Mount

    		Shaft Diameter6.35 mm

    		Mounting Hole Diameter10.287mm

    		Power Rating1W

    		Termination StyleSolder Lug

    		Tolerance±3%

    		Series3547

    		Length40.43mm

    		Depth22.48mm

    		Height27.5mm

    		Dimensions40.43 x 22.48 x 27.5mm

    		Minimum Operating Temperature-55°C

    		Maximum Operating Temperature+125°C

    		Temperature Coefficient±50ppm/°C
