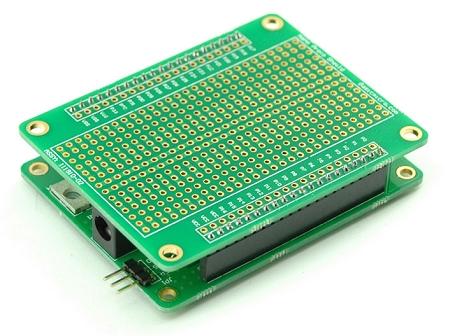

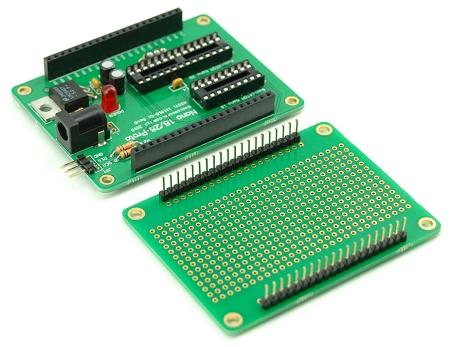

The Nano 18 and 28 Project Board can be mated with the Nano Prototype Shield which is a removable prototyping area,

You can then reuse your Nano 18/28 project board over and over again only replacing the low cost prototype area(not supplied),


This makes the Nano project boards a great development aid since only the prototype area needs to be replaced between projects,

The Nano 18 and 28 Project Board works with the Nano 18, Nano 28 and Nano 28x TURBO chips,

The PCB includes a 5V Power Regulator and 3 pin interface to connect to the Nano USB Programming adapter option,

It comes with a 20MHz resonator for use with the Nano 28X to give a speed over 33,000 Basic Instructions per Second,

It comes ready assembled and tested,

Shield PCB's can be purchased from our shop, see our other items.

---
