8 x STMicro BTA06-600TRG TRIAC 600V 6A Gate Trigger 1.5V 5mA 3-pin TO-220AB PIC - STMicroelectronics

roll over the image to zoom in

£0.00
£12.99
RS 714-2561
Earn0
reward points

In stock: 35

Sorry! We're out of stock

Add To Your Wishlist
    Number of Pins:
    3


    STMicroelectronics

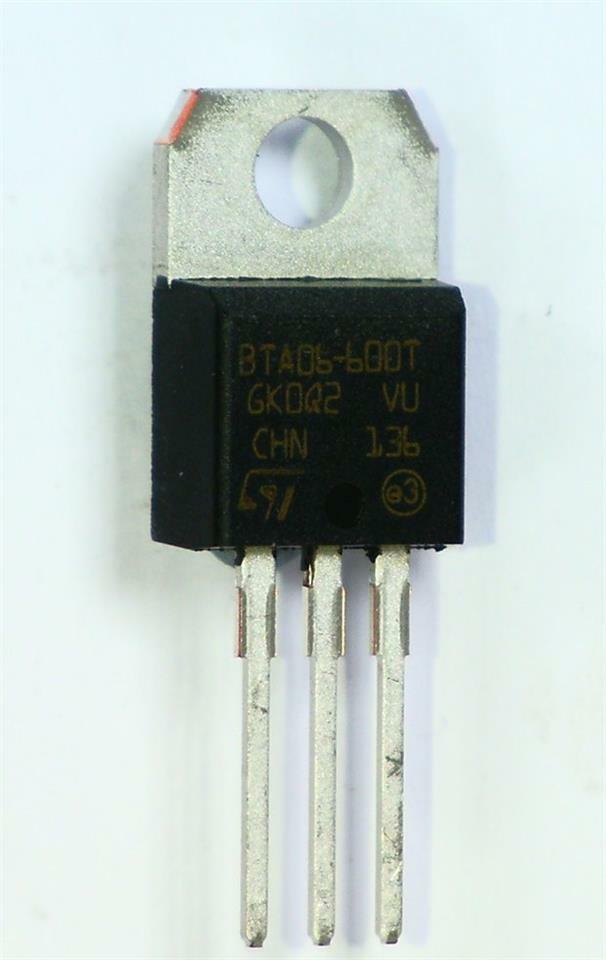

    BTA06-600TRG, TRIAC, 600V 6A, Gate Trigger 1.5V 5mA, 3-pin TO-220AB

    You will get a pack of 8 Triac's



  • BrandSTMicroelectronics
  • Mfr. Part No.BTA06-600TRG
    •
    Product Details

    TRIAC, up to 6A, STMicroelectronics

    TRIACs

    A range of TRIACs (Triodes for Alternating Current - also known as Bidirectional Thyristors) for AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a very convenient switch for alternating current circuit.

    These devices are perfect for allowing connection of AC devices to microcontrollers such as Arduino and PIC etc as the gate trigger is Logic Level and 5MA max trigger current, i simple optocoupler will give isolation between the AC line and the logic circuits, the TAB on this device is isolated from the power connections for easy mounting onto a heat sink

    Specifications
    Dimensions10.5 x 4.82 x 9.02mm
    Height9.02mm
    Length10.5mm
    Maximum Gate Trigger Current5mA
    Maximum Gate Trigger Voltage1.5V
    Maximum Holding Current15mA
    Maximum Operating Temperature+110 °C
    Minimum Operating Temperature-40 °C
    Mounting TypeThrough Hole
    Package TypeTO-220AB
    Peak On-State Voltage1.65V
    Pin Count3
    Rated Average On-State Current6A
    Repetitive Peak Forward Blocking Voltage          600V
    Repetitive Peak Off-State Current0.01mA
    Repetitive Peak Reverse Voltage600V
    Surge Current Rating63A
    Width4.82mm



    For a Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.

    Please see our other items for a wide range of Electronic components.
