530 x Panasonic DA6X108K0R SMT Small Signal Diode, Isolated, 300V 200mA, 6-Pin - Panasonic

roll over the image to zoom in

£0.00
£76.99
RS 715-9667
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    530
    Unit Type:
    Unit
    Location:
    TS-LB 1i ALSO APR BOX G


    Panasonic

    Panasonic DA6X108K0R SMT Small Signal Diode, Isolated, 300V 200mA, 6-Pin Mini6 G4 B


    • BMUK Part # :-715-9667
    • BrandPanasonic
    • Mfr. Part No.DA6X108K0R
    •
    •
    • You will get a Reel of 530 Diodes

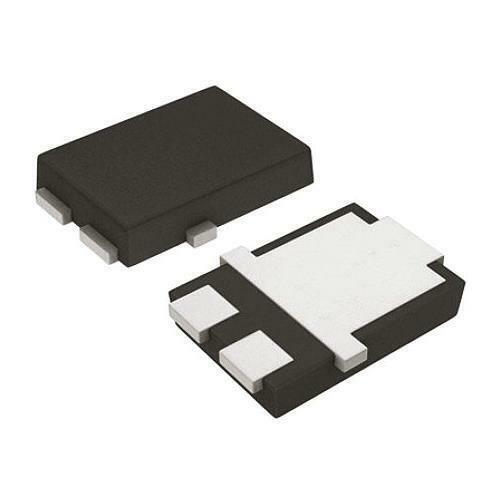

    Image representative of range



    Product Details

    Small Signal Switching Diodes, DA Series, Panasonic


    Diodes and Rectifiers, Panasonic


    Specifications


    		Maximum Continuous Forward Current200mA

    		Diode ConfigurationIsolated

    		Rectifier TypeSmall Signal

    		Peak Reverse Repetitive Voltage300V

    		Mounting TypeSurface Mount

    		Package TypeMini6 G4 B

    		Diode TypeSilicon Junction

    		Pin Count6

    		Maximum Forward Voltage Drop1.2V

    		Length2.9mm

    		Width1.5mm

    		Height1.1mm

    		Peak Non-Repetitive Forward Surge Current1A

    		Maximum Operating Temperature+150 °C

    		Peak Reverse Current1µA

    		Dimensions2.9 x 1.5 x 1.1mm




    To view the datasheet please Click Here
