5000 x TE Connectivity Crimp Contact, Female, 0.2mm²-0.5mm², 24AWG-20AWG - TE Connectivity
roll over the image to zoom in
£0.00
£431.99
RS 680-4965
Unit Quantity:
5000
Unit Type:
Unit
Location:
PR
TE Connectivity

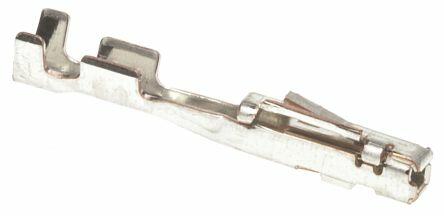

TE Connectivity MULTILOCK 025 Series Crimp Contact, Female, 0.2mm² to 0.5mm², 24AWG to 20AWG, Tin Plating
- BrandTE Connectivity
- Mfr. Part No.1123343-1
- You will get approximately 5000 Crimp Contacts on 1 Reel
Image representative of range
Product Details
MULTILOCK 040 & 070 Contacts & Tooling
Crimp terminating contacts
Snap-in fixing connector cavities
TE Connectivity MULTILOCK Connectors and Contacts
This is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications.
Snap in, crimp contacts for cable receptacles
Board mounting options are pre-loaded with male contacts
For wire to board connections utilise a cable and a board receptacle
Cable cap accepts female contacts, cable plug accepts male contacts
Cable cap mates cable plug to allow wire to wire connections
High density wiring connectors with 2.5mm contact centres
| 040 Series | 070 Series | |
| Current rating | 8A | 15A |
| Withstand voltage | 1kVac for 1 minute | 1kVac for 1 minute |
| Low level resistance | 10mΩ max (initial) | 1mΩ max (initial) |
| Overall resistance | 20mΩ max (final) | 10mΩ max (final) |
| Operating temperature | -30°C to +150°C | -30°C to +105°C |
Specifications
| Gender | Female | |
| For Use With | MULTILOCK Connectors | |
| Series | MULTILOCK 025 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 20AWG |
