500 x Panasonic ERJB2 Series Thick Film Fixed Resistor 0612 Case 43mΩ ±1% 1W - Panasonic
roll over the image to zoom in
£0.00
£55.99
RS 764-0346
Unit Quantity:
500
Unit Type:
Unit
Location:
TS-LB 3H
Panasonic

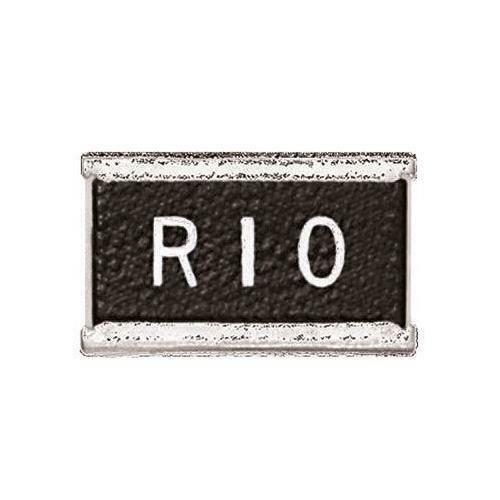

Panasonic ERJB2 Series Thick Film Fixed Resistor 0612 Case 43mΩ ±1% 1W 0 → +200ppm/°C
- BMUK Part # :-764-0346
- BrandPanasonic
- Mfr. Part No.ERJB2CFR043V
-
- You will get 500 Resistors on 1 Reel
Product Details
Panasonic Surface Mount Resistor1206 Format ERJ B2 Series - 1%
ERJ B2 high-power surface mount chip resistors from Panasonic feature a wide terminal construction. This allows for excellent heat dissipation and ensures the reliability of solder joints.
Features & Benefits:
AEC-Q200 qualified
Current sensing
Applications
These high-power chip resistors are AEC-Q200 qualified and suitable for automotive applications. For example, airbag systems, anti-lock breaking systems, and ECUs. They can also be used for current sensing in power supply circuits.
Specifications
| Resistance | 43 mΩ | |
| Package/Case | 0612 | |
| Tolerance | ±1% | |
| Power Rating | 1W | |
| Temperature Coefficient | 0 → +200ppm/°C | |
| Technology | Thick Film | |
| Dimensions | 3.2 x 1.6 x 0.65mm | |
| Automotive Standard | AEC-Q200 | |
| Length | 3.2mm | |
| Depth | 1.6mm | |
| Height | 0.65mm | |
| Series | ERJB2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +155°C | |
| Termination Style | Wide Terminal | |
| Minimum Temperature Coefficient | 0ppm/°C | |
| Case Style | Moulded | |
| Maximum Temperature Coefficient | +200ppm/°C |
