50 x RS Pro Aluminium Electrolytic Capacitor 33uF 16V dc Through Hole +105°C - RS Pro
roll over the image to zoom in
£0.00
£7.49
RS 707-5723
Unit Quantity:
50
Unit Type:
Unit
Location:
ES-1M
RS Pro

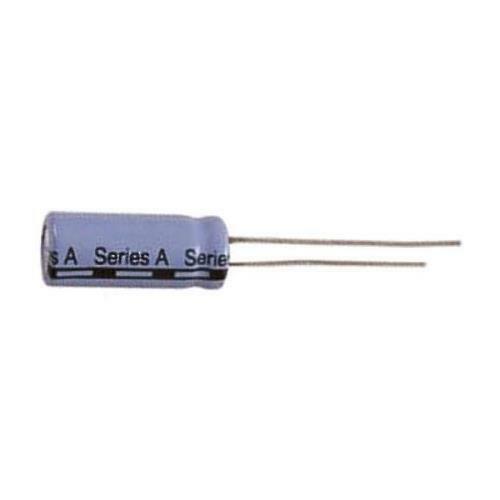

RS Pro Aluminium Electrolytic Capacitor 33μF 16V dc 5mm Through Hole RS Series +105°C
- BMUK Part # :- 707-5723
- BrandRS Pro
- You will get a pack of 50 Capacitors
Product Details
RS Aluminium 7 mm Radial Capacitors
Specifications
| Capacitance | 33 µF | |
| Technology | Electrolytic | |
| Voltage | 16 V dc | |
| Mounting Type | Through Hole | |
| Dimensions | 5 (Dia.) x 7mm | |
| Length | 7mm | |
| Height | 7mm | |
| Diameter | 5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 2mm | |
| Construction | Radial | |
| Series | RS | |
| Tolerance | ±20% | |
| Dissipation Factor | 16% | |
| Dielectric Material Family | Aluminium Electrolytic | |
| Tolerance Plus | +20% | |
| Lifetime | 1000h | |
| Polarised | Polar | |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min | |
| Terminal Type | Through Hole | |
| Lead Diameter | 0.5mm | |
| Ripple Current | 42mA | |
| Tolerance Minus | -20% |
