5 x Wurth Elektronik 820412711 Metal Oxide Varistor 275VAC 350VDC 80J 10mm Disk - Wurth Elektronik

roll over the image to zoom in

£0.00
£5.99
Farnell 2808042
Earn0
reward points

In stock: 98

Sorry! We're out of stock

Add To Your Wishlist
    Type:
    Varistor
    Material:
    Metal Oxide
    Unit Quantity:
    5
    Unit Type:
    Unit
    Tolerance Rating:
    ±5 %
    Item Diameter:
    10 mm
    Location:
    TS SHELF


    Wurth Elektronik

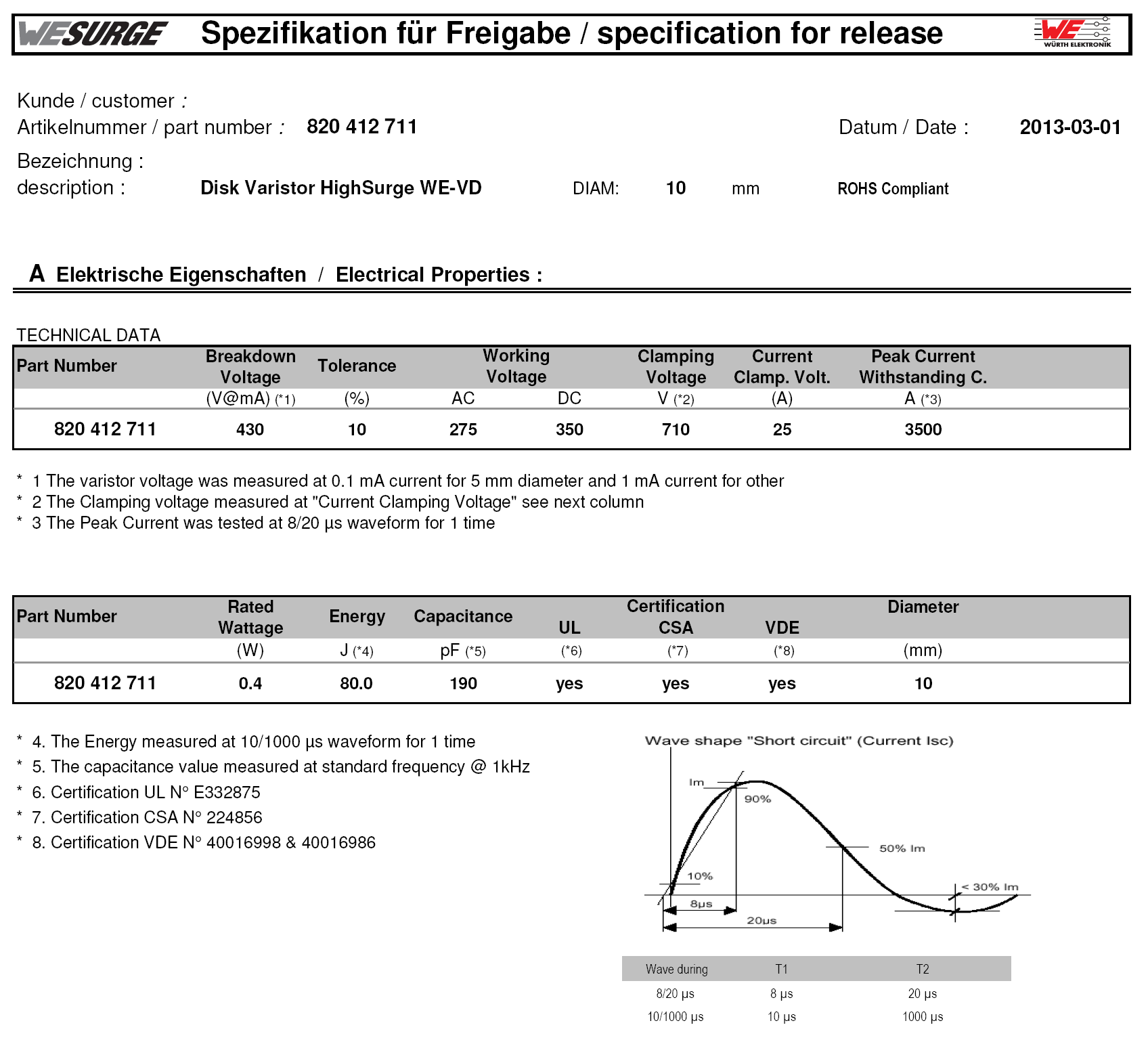

    5 x Wurth Elektronik, 820412711 80J Metal Oxide Varistor 275VAC 350VDC 10mm Disk

    You will get FIVE varistors


    ManufacturerWürth Elektronik
    Series-
    PackagingCut Tape (CT)
    Part StatusActive
    Maximum AC Volts275V
    Maximum DC Volts350V
    Varistor Voltage (Min)387V
    Varistor Voltage (Typ)430V
    Varistor Voltage (Max)473V
    Current - Surge3,5kA
    Energy80J
    Number of Circuits1
    Capacitance @ Frequency190pF @ 1kHz
    Operating Temperature-40°C ~ 85°C (TA)
    Features-
    Mounting TypeThrough Hole
    Package / CaseDisc 10mm
