5 x Vishay VS-11DQ10, Schottky Diode, 100V 1.1A, 2-Pin DO-204AL - Vishay
roll over the image to zoom in
£0.00
£5.99
RS 395-2487
Unit Quantity:
5
Unit Type:
Unit
Vishay

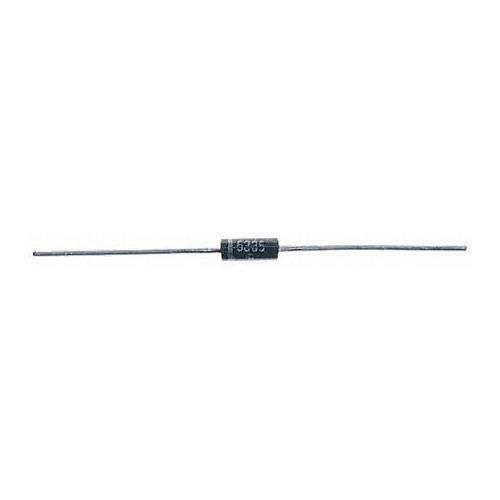

Vishay VS-11DQ10, Schottky Diode, 100V 1.1A, 2-Pin DO-204AL
- BMUK Part # :-395-2487
- BrandVishay
- Mfr. Part No.VS-11DQ10
- You will get a pack of 5 Schottky Diodes
 |
Product Details
High Performance Schottky Rectifiers, 1A to 1.5A, Vishay Semiconductor
A range of Schottky Rectifiers from Vishay Semiconductor. These diodes exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely short and they are suitable for applications requiring fast switching and low power loss.
Schottky Rectifiers, Vishay Semiconductor
Specifications
| Maximum Continuous Forward Current | 1.1A | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Peak Reverse Repetitive Voltage | 100V | |
| Mounting Type | Through Hole | |
| Package Type | DO-204AL | |
| Diode Type | Schottky | |
| Pin Count | 2 | |
| Length | 5.21mm | |
| Width | 2.7mm | |
| Height | 2.7mm | |
| Dimensions | 2.7 x 5.21 x 2.7mm | |
| Maximum Operating Temperature | +150 °C | |
| Peak Reverse Current | 500µA | |
| Minimum Operating Temperature | -40 °C | |
| Peak Non-Repetitive Forward Surge Current | 85A |
