5 x Vishay IRF710PBF N-channel MOSFET, 2A, 400V, 3-Pin TO-220AB - Vishay
roll over the image to zoom in
£0.00
£7.99
RS 543-0074
Unit Quantity:
5
Unit Type:
Unit
Location:
ES WS-2G
Vishay

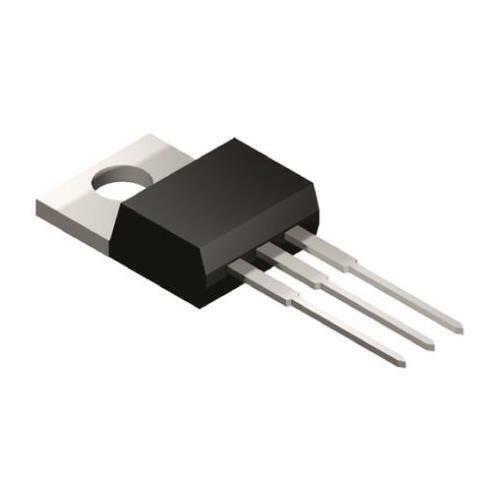

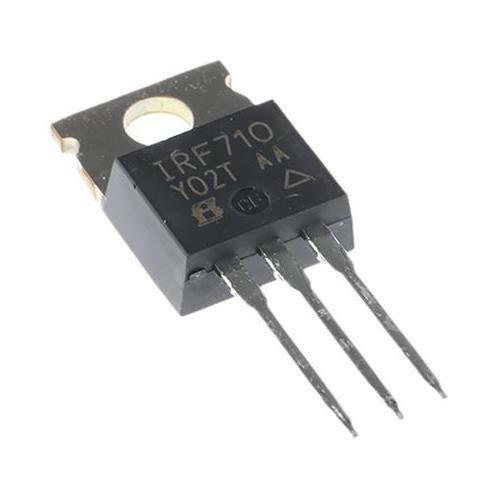

Vishay IRF710PBF N-channel MOSFET, 2 A, 400 V, 3-Pin TO-220AB
- BMUK Part No.543-0074
- BrandVishay
- Mfr Part No.IRF710PBF
-
- You will get a pack of 5 Transistors
Product Details
N-Channel MOSFET, 300V to 400V, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
Specifications
Maximum Operating Temperature
+150 °C
Number of Elements per Chip
1
Length
10.41mm
Transistor Configuration
Single
Typical Turn-On Delay Time
8 ns
Brand
Vishay
Typical Turn-Off Delay Time
21 ns
Maximum Continuous Drain Current
2 A
Package Type
TO-220AB
Maximum Power Dissipation
36 W
Mounting Type
Through Hole
Minimum Operating Temperature
-55 °C
Width
4.7mm
Height
9.01mm
Minimum Gate Threshold Voltage
2V
Maximum Drain Source Resistance
3.6 Ω
Maximum Drain Source Voltage
400 V
Pin Count
3
Dimensions
10.41 x 4.7 x 9.01mm
Category
Power MOSFET
Typical Gate Charge @ Vgs
17 nC @ 10 V
Transistor Material
Si
Channel Mode
Enhancement
Typical Input Capacitance @ Vds
170 pF@ 25 V
Channel Type
N
Maximum Gate Source Voltage
-20 V, +20 V
