Vishay

5 x Vishay AC05 Series Axial Wirewound Resistor 150mΩ ±5% 5W -80 → -10ppm/°C

You will get 5 resistors

​

• BMUK Part # :-683-1046
• BrandVishay
• Mfr. Part No.AC05000001507JAC00

The 3D viewer requires the Java Runtime Environment (JRE) and for Java to be enabled on your system.

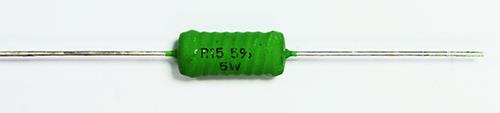

Image representative of range

Product Details

AC05 Series 5W, Axial

All welded construction
Ceramic core
Non-flammable cement coating
Tinned copper-clad iron leads (for axial parts)
High power dissipation in small volume
Ideal for pulse application

Power at 40°C	5 W
Power at 70°C	4.7 W
Resistance Tolerance	5 %
Temperature Coefficient	100mΩ → 910Ω	1kΩ → 10kΩ
	-10 → -80 ppm/°C	100 → 180 ppm/°C
Operating Temperature	-40 → 70 °C
Limiting Element Voltage	√PR
Body length	18 mm
Body diameter	7.5 mm
Lead diameter	0.8 mm
Lead Length	23 mm

Ceramic Wirewound, Axial - 1W to 17W

Specifications

	Resistance	150mΩ
	Power Rating	5W
	Tolerance	±5%
	Technology	Wire Wound
	Series	AC05
	Case Style	Conformal
	Temperature Coefficient	-80 → -10ppm/°C
	Termination Style	Axial
	Dimensions	7.5 (Dia.) x 18mm
	Length	18mm
	Diameter	7.5mm
	Maximum Temperature Coefficient	-10ppm/°C
	Minimum Temperature Coefficient	-80ppm/°C
