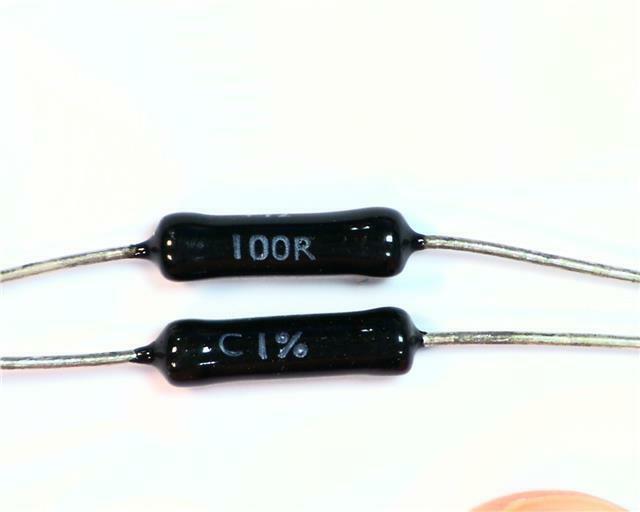

5 x TYCO H2 Series 100Ω ±1% 1 Watt Axial Leaded Precision Resistor ±50ppm/°C - TYCO

roll over the image to zoom in

£0.00
£7.99
Tyco H2 100 Ohm 1 Watt
Earn0
reward points

In stock: 41

Sorry! We're out of stock

Add To Your Wishlist
    Location:
    TS LB 5A


    TYCO



    Tyco H2 Series Axial Leaded Precision Fixed Resistor 100Ω ±1% 1W ±50ppm/°C


    • BrandTYCO
    • Mfr. Part No.H2 100R0 FC

    •
    • You will get a pack of 5 resistors







    Specifications

    Resistance100Ω
    Package/CaseAxial Wire Ended
    Tolerance±1%
    Power Rating1W
    Temperature Coefficient±50ppm/°C
    TechnologyMetal Film
    Dimensions15.5 x 5.0mm
    Length15.5mm
    Diameter MAX5.5mm
    Lead Length x Dia30mm, 0.8mm
    SeriesH2
    Minimum Operating Temperature-55°C
    Maximum Operating Temperature+155°C
    Termination StyleAxial Lead
    Minimum Temperature Coefficient-50ppm/°C
    Maximum Temperature Coefficient+50ppm/°C


    For a Specification PDF Please  CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.

    Please see our other items for a wide range of Electronic components.
