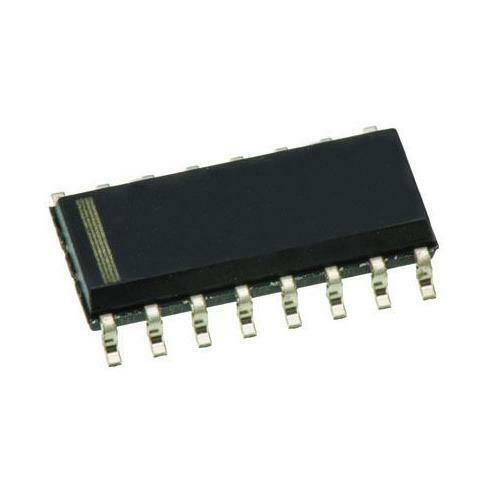

5 x Toshiba Decoder, Demultiplexer TC74HC238AP, 1-of-8 Non-Inverting 2-6V 16-Pin - Toshiba
roll over the image to zoom in
£0.00
£5.99
RS 539-9759
Unit Quantity:
5
Unit Type:
Unit
Location:
TS Shelf-IC Box
Toshiba
Toshiba TC74HC238AP(F), Decoder, Demultiplexer, 1-of-8, Non-Inverting, 2 → 6 V, 16-Pin PDIP
- BMUK Part # :-539-9759
- BrandToshiba
- Mfr. Part No.TC74HC238AP
-
- You will get a pack of 5 ICs
Product Details
TC74HC Series, Toshiba
Process: CMOS
Operating voltage Range: 2.0 to 6.0 V
74HC Family
Specifications
| Logic Family | HC | |
| Logic Function | Decoder, Demultiplexer | |
| Demultiplexing Capability | 1-of-8 | |
| Number of Elements per Chip | 1 | |
| Number of Input Enables per Element | 3 | |
| Polarity | Non-Inverting | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Dimensions | 19.25 x 6.4 x 3.5mm | |
| Height | 3.5mm | |
| Length | 19.25mm | |
| Maximum Operating Supply Voltage | 6 V | |
| Width | 6.4mm | |
| Minimum Operating Supply Voltage | 2 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Board Level Components | Y |
