5 x Texas Instruments SN74LS374NE4 Octal D Type Flip Flop IC, 3-State 4.75-5.25V - Texas Instruments
roll over the image to zoom in
£0.00
£7.99
RS 309-262
Unit Quantity:
5
Unit Type:
Unit
Location:
TS BRA-1L
Texas Instruments

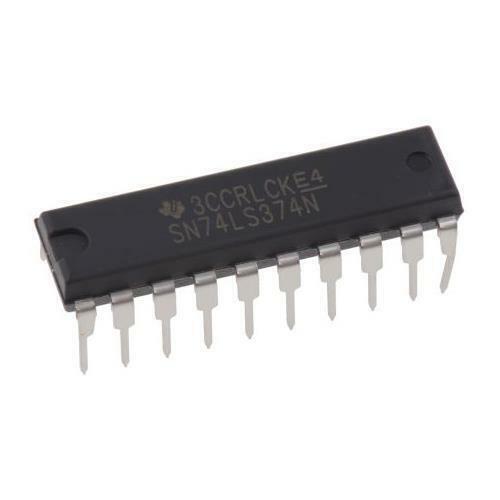

Texas Instruments SN74LS374NE4 Octal D Type Flip Flop IC, 3-State, 4.75 → 5.25 V, 20-Pin PDIP
- BMUK Part # :-309-262
- BrandTexas Instruments
- Mfr. Part No.SN74LS374N
- You will get a pack of 5 ICs
Product Details
Specifications
| Logic Family | LS | |
| Logic Function | D Type | |
| Input Type | Single Ended | |
| Output Type | 3 State | |
| Output Signal Type | Single Ended | |
| Triggering Type | Positive Edge | |
| Polarity | Non-Inverting | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 20 | |
| Number of Elements per Chip | 8 | |
| Maximum Propagation Delay Time @ Maximum CL | 28 ns @ 5 V | |
| Dimensions | 24.33 x 6.35 x 4.57mm | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Length | 24.33mm | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Propagation Delay Test Condition | 45pF | |
| Minimum Operating Supply Voltage | 4.75 V | |
| Height | 4.57mm | |
| Width | 6.35mm |
