5 x Texas Instruments CD74HC193E 4-stage Binary Counter, 2-6V, 16-Pin - Texas Instruments
roll over the image to zoom in
£0.00
£7.49
RS 663-0133
Unit Quantity:
5
Unit Type:
Unit
Location:
TS BRA-9F
Texas Instruments

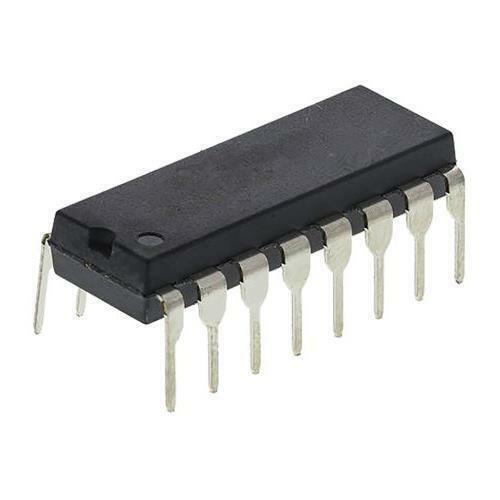

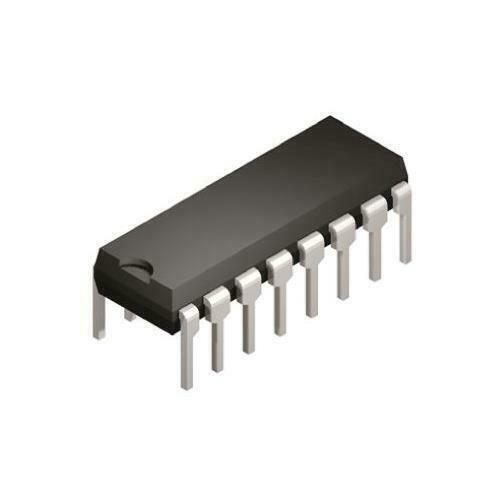

Texas Instruments CD74HC193E 4-stage Binary Counter, Up/Down Counter, 2 → 6 V, 16-Pin PDIP
- BMUK Part # : 663-0133
- BrandTexas Instruments
- Mfr. Part No.CD74HC193E
- You will get a pack of 5 ICs
Product Details
74HC Family Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters and Shift Registers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
Specifications
| Package Type | PDIP | |
| Logic Function | Counter | |
| Number of Stages | 4 | |
| Logic Family | HC | |
| Mounting Type | Through Hole | |
| Counter Type | Binary | |
| Operation Mode | Down Counter, Up Counter | |
| Number of Elements | 1 | |
| Pin Count | 16 | |
| Minimum Operating Supply Voltage | 2 V | |
| Maximum Operating Supply Voltage | 6 V | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Length | 19.3mm | |
| Width | 6.35mm | |
| Triggering Type | Positive Edge | |
| Preset Type | Synchronous | |
| Height | 4.57mm | |
| Direction Type | Bi-Directional | |
| Reset Type | Asynchronous | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -55 °C |
