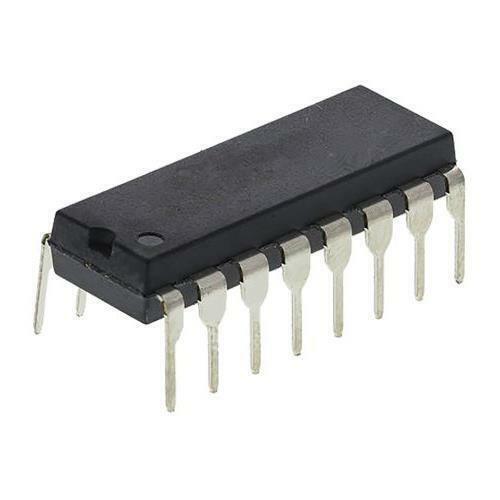

5 x Texas Instruments 74AC11086N, Quad 2-Input XOR Logic Gate, 3-5.5V, 16-Pin - Texas Instruments

roll over the image to zoom in

£0.00
£16.99
RS 825-3202
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    5
    Unit Type:
    Unit
    Location:
    ES-9D


    Texas Instruments



    Texas Instruments 74AC11086N, Quad 2-Input XOR Logic Gate, 3 → 5.5 V, 16-Pin PDIP


    • BMUK Part # :-825-3202
    • BrandTexas Instruments
    • Mfr Part No.74AC11086N
    •
    • You will get a pack of 5 ICs




    Texas Instruments 74AC11086N, Quad 2-Input XOR Logic Gate, 3 → 5.5 V, 16-Pin PDIP



    Product Details

    74AC Family, Texas Instruments








    74AC Family

    Specifications


    Maximum High Level Output Current
    -24mA
    Maximum Operating Temperature
    +85 °C
    Number Of Elements
    4
    Number of Inputs per Gate
    2
    Length
    19.69mm
    Schmitt Trigger Input
    No
    Maximum Propagation Delay Time @ Maximum CL
    7.6ns
    Minimum Operating Supply Voltage
    3 V
    Brand
    Texas Instruments
    Package Type
    PDIP
    Mounting Type
    Through Hole
    Input Type
    CMOS
    Minimum Operating Temperature
    -40 °C
    Width
    6.60mm
    Logic Family
    AC
    Height
    4.57mm
    Logic Function
    XOR
    Output Type
    CMOS
    Maximum Operating Supply Voltage
    5.5 V
    Pin Count
    16
    Dimensions
    19.69 x 6.6 x 4.57mm
    Maximum Low Level Output Current
    24mA
