5 x STMicro BTB06-600SW TRIAC 600V 6A Gate Trigger 1.3V 10mA AC Dimmer Control - STMicroelectronics

roll over the image to zoom in

£0.00
£5.99
RS 486-0985
Earn0
reward points

In stock: 12

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    5
    Unit Type:
    Unit
    Location:
    BRA-9P


    STMicroelectronics

    STMicroelectronics, BTB06-600SW, TRIAC, 600V 6A, Gate Trigger 1.3V 10mA, 3-Pin TO-220AB

    You will get a pack of 5 Triac's

      • BrandSTMicroelectronics
      • Mfr. Part No.BTB06-600SW
      STMicroelectronics
      STMicroelectronics, BTB06-600SW, TRIAC, 600V 6A, Gate Trigger 1.3V 10mA, 3-Pin TO-220AB

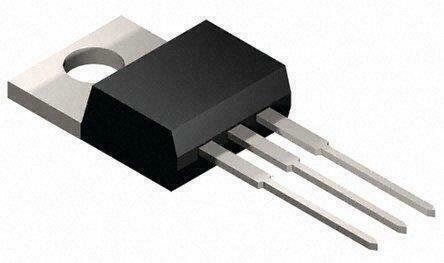

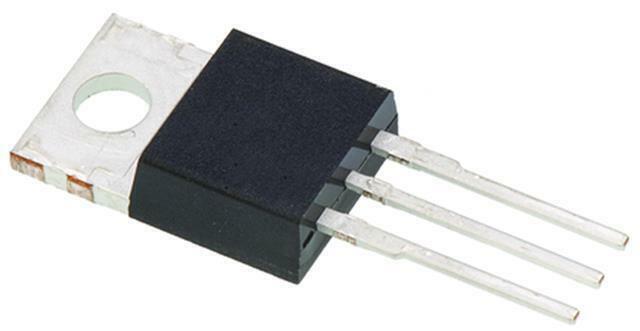

      Image representative of range
      Product Details

      TRIAC, up to 6A, STMicroelectronics



      https://uk.rs-online.com/images60/L262028-01.gif



      TRIACs

      A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.

      Specifications
      Rated Average On-State Current6A
      Mounting TypeThrough Hole
      Package TypeTO-220AB
      Maximum Gate Trigger Current10mA
      Repetitive Peak Reverse Voltage600V
      Surge Current Rating63A
      Pin Count3
      Maximum Gate Trigger Voltage1.3V
      Repetitive Peak Forward Blocking Voltage600V
      Maximum Holding Current15mA
      Dimensions10.4 x 4.6 x 9.15mm
      Length10.4mm
      Width4.6mm
      Height9.15mm
      Peak On-State Voltage1.55V
      Repetitive Peak Off-State Current0.005mA
      Maximum Operating Temperature+125 °C
      Minimum Operating Temperature-40 °C






































































































    For a Specification PDF Please CLICK HERE
