5 x RS RNYD5-8 Insulated Crimp Ring Terminal, M8 (5/16) Stud, 4mm²-6mm² 12-10AWG - RS Pro
roll over the image to zoom in
£0.00
£5.99
RS 267-3874
Unit Quantity:
5
Unit Type:
Unit
RS Pro

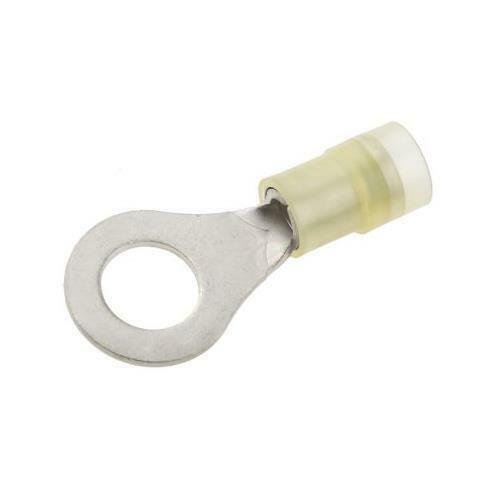

RS Pro RNYD Series Insulated Crimp Ring Terminal, M8 (5/16) Stud Size, 4mm² to 6mm², 12AWG to 10AWG, Yellow
- BMUK Part # :-267-3874
- BrandRS Pro
- Mfr. Part No.RNYD5-8
-
- You will get a pack of 5 Connectors
Product Details
RS Pro Insulated Double Crimp Ring Terminals

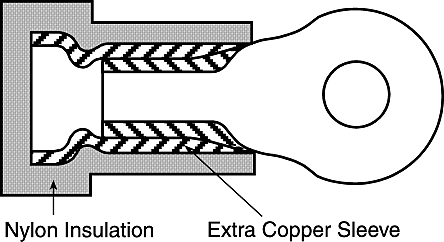

Insulated copper double crimp ring terminals with a copper sleeved double crimp barrel. These insulated crimp ring connectors are colour coded for use with different wire ranges and are available with various stud sizes. For suitable crimp tool see stock number 267-3133.
Red 0.5 - 1.5 mm²
Blue 1 - 2.6 mm²
Yellow 2.5 - 6.5 mm²
Approvals
UL Listed; UL Listed for Canada
RS Pro Range
| Technical Specification | |
| Temperature rating | +70°C |
| Body Material | Copper |
| Body Plating | Tin |
Specifications
| Series | RNYD | |
| Insulation | Insulated | |
| Inner Ring Diameter | 8.4mm | |
| Outer Ring Diameter | 15mm | |
| Insulation Material | Nylon | |
| Minimum Wire Size mm² | 4mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Stud Size | M8 (5/16) | |
| Colour | Yellow | |
| Thickness | 1mm | |
| Contact Material | Copper | |
| Overall Length | 34mm |
To view the datasheet please Click Here
