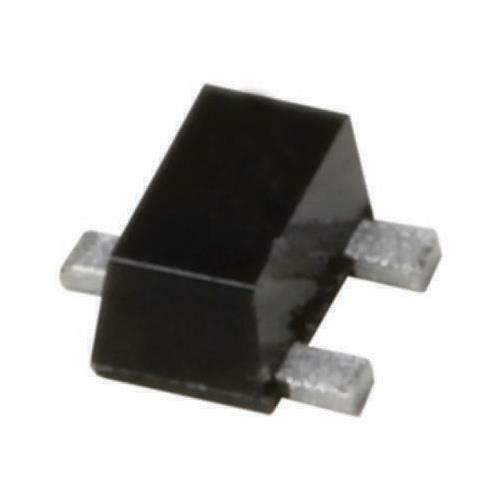

5 x Rohm DTB114EKT146 PNP Digital Transistor, 500mA 10kΩ, Ratio Of 1, 3-Pin SMT - ROHM
roll over the image to zoom in
£0.00
£4.99
RS 246-1867
Unit Quantity:
5
Unit Type:
Unit
Location:
TS 59P
ROHM
ROHM, DTB114EKT146 PNP Digital Transistor, 500 mA 10 kΩ, Ratio Of 1, 3-Pin SMT
- BMUK Part # :- 246-1867
- BrandROHM
- Mfr. Part No.DTB114EKT146
-
- You will get a pack of 5 Transistors
Product Details
Dual Resistor Digital PNP Transistors, ROHM
Digital Transistors, ROHM Semiconductor
Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
Specifications
| Transistor Type | PNP | |
| Number of Elements per Chip | 1 | |
| Maximum Continuous Collector Current | 500 mA | |
| Typical Input Resistor | 10 kΩ | |
| Mounting Type | Surface Mount | |
| Base-Emitter Resistor | 10kΩ | |
| Package Type | SMT | |
| Pin Count | 3 | |
| Minimum DC Current Gain | 56 | |
| Transistor Configuration | Single | |
| Typical Resistor Ratio | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Height | 1.1mm | |
| Width | 1.6mm | |
| Dimensions | 2.9 x 1.6 x 1.1mm | |
| Length | 2.9mm |
