5 x Panasonic Aluminium Electrolytic Capacitor ECA1HHG102 1000uF 50 V dc 12.5mm - Panasonic

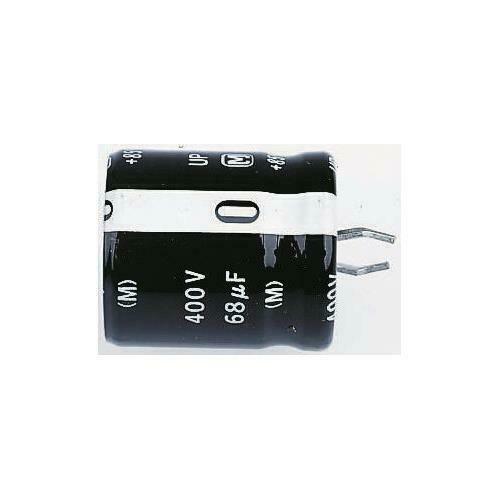

roll over the image to zoom in
£0.00
£5.99
RS 108-4096
Unit Quantity:
5
Unit Type:
Unit
Location:
TS 24C
Panasonic
Panasonic Aluminium Electrolytic Capacitor 1000μF 50 V dc 12.5mm Through Hole series NHG lifetime 2000h
- BMUK Part # :-108-4096
- BrandPanasonic
- Mfr. Part No.ECA1HHG102
-
Product Details
NHG Series
Panasonic NHG Type A electrolytic capacitors feature endurance of 1000 to 2000 hours at +105°C (dependent on case size). These radial capacitors offer a compact solution in comparison to the NHE Series.
Radial lead type
High reliability
Long life
Low impedance
High ripple current
Applications
Panasonic NHG Series Type A electrolytic capacitors are ideal for use in industrial instruments due to their high reliability.
| Capacitance tolerance (%) | 20 |
| Operating Temperature (°C) | -55 to +105 (≤100Vdc), -25 to +105 (≥160Vdc) |
| Leakage current | ≤0.01CV or 3μA (≤100Vdc), ≤0.06CV or 10μA (≥160Vdc) |
| Life Expectancy @ 105°C | 2000 hours (1000 hours Diameter ≤8mm) |
Radial 105°C
Specifications
| Capacitance | 1000 µF | |
| Technology | Electrolytic | |
| Voltage | 50 V dc | |
| Dimensions | 12.5 (Dia.) x 25mm | |
| Height | 25mm | |
| Diameter | 12.5mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 5mm | |
| Construction | Radial | |
| Series | NHG | |
| Tolerance Plus | +20% | |
| Ripple Current | 950mA | |
| Lead Diameter | 0.6mm | |
| Tolerance | ±20% | |
| Leakage Current | 3 μA | |
| Lifetime | 2000h | |
| Tolerance Minus | -20% | |
| Terminal Type | Through Hole |
