5 x ON Semiconductor MC33171PG Op Amp, 1.8MHz, 5V, 9V, 12V, 15V, 18V, 24V, 28V - ON Semiconductor
roll over the image to zoom in
£0.00
£8.99
RS 516-5203
Unit Quantity:
5
Unit Type:
Unit
Location:
BRA 11D
ON Semiconductor

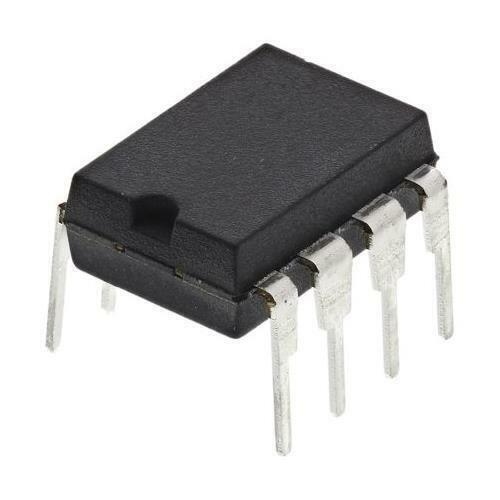

ON Semiconductor MC33171PG Op Amp, 1.8MHz, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V, 8-Pin PDIP
- BMUK Part # :-516-5203
- BrandON Semiconductor
- Mfr. Part No.MC33171PG
-
- You will get a pack of 5 Op Amps
 |
Product Details
MC33171/2/4, MCV33172, Low Power, Single Supply 3 V to 44 V, Operational Amplifier, ON Semiconductor
MC33171 (Single), MC33172 (Dual), MC33174 (Quad)
Low Supply Current: 180 μA per Amplifier
Wide Bandwidth: 1.8 MHz
High Slew Rate: 2.1 V/μs
Low Input Offset Voltage: 2 mV
NCV33172 for Automotive applications; AEC-Q100 Qualified
Operational Amplifiers, ON Semiconductor
Specifications
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Power Supply Type | Dual, Single | |
| Number of Channels per Chip | 1 | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V | |
| Typical Gain Bandwidth Product | 1.8MHz | |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V | |
| Typical Slew Rate | 2.1V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Height | 3.44mm | |
| Length | 10.16mm | |
| Dimensions | 10.16 x 6.6 x 3.44mm | |
| Typical Voltage Gain | 113.98 dB | |
| Width | 6.6mm | |
| Typical Input Voltage Noise Density | 32nV/√Hz |
