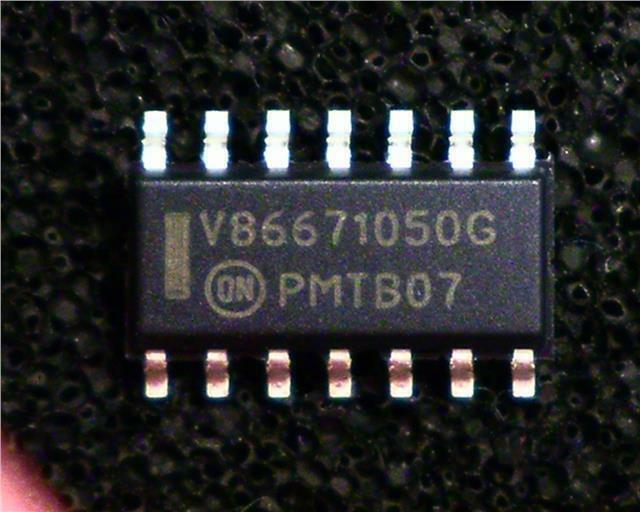

5 x NCV866710D250R2G, Linear Voltage Regulator, LDO 150mA 5 V, ±2%, 14-Pin SOIC - ON Semiconductor
roll over the image to zoom in
£0.00
£5.99
RS 748-5287
Unit Quantity:
5
Unit Type:
Unit
Location:
APR SHELF BOX 1
ON Semiconductor
ON Semiconductor NCV866710D250R2G Linear Voltage Regulator, 150mA, 5 V, ±2%, SOIC 14-Pin
- BMUK Part # :-748-5287
- BrandON Semiconductor
- Mfr. Part No.NCV866710D250R2G
- You will get 5 regulators on SM tape,
- RS Price on these is over £1 each
Product Details
Low Dropout (LDO) Linear Voltage Regulators, 150mA, 5V, 8V, 10V and Adjustable, ON Semiconductor
LDO (Low Dropout) Linear Voltage Regulators, ON Semiconductor
The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
Specifications
| Output Voltage | 5 V | |
| Maximum Output Current | 150mA | |
| Package Type | SOIC | |
| Output Type | Fixed | |
| Mounting Type | Surface Mount | |
| Minimum Input Voltage | 5.5 V | |
| Maximum Input Voltage | 40 V | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Number of Outputs | 1 | |
| Polarity | Positive | |
| Line Regulation | 20 mV | |
| Typical Dropout Voltage @ Current | 300mV | |
| Series | NCV8 | |
| Height | 1.75mm | |
| Load Regulation | 20 mV | |
| Dimensions | 8.75 x 4 x 1.75mm | |
| Length | 8.75mm | |
| Width | 4mm | |
| Dropout Voltage Measurement Current | 150 mA | |
| Quiescent Current | 50µA | |
| Accuracy | ±2% |
Specification PDF Please CLICK HERE
