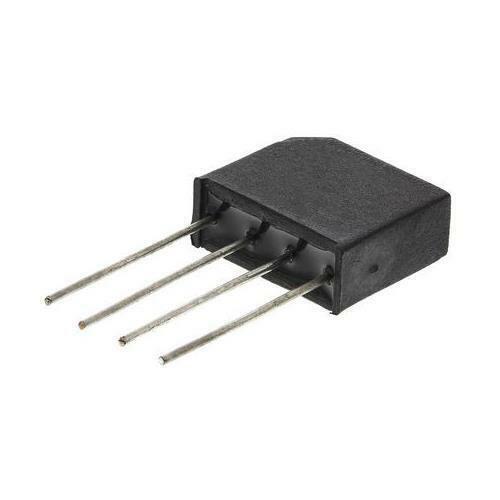

5 x Lite-On KBJ406G, Bridge Rectifier, 4A 600V, 4-Pin KBJ4 - Lite-On

roll over the image to zoom in

£0.00
£5.99
RS 701-0350
Earn0
reward points

In stock: 15

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    5
    Unit Type:
    Unit
    Location:
    ES WS-4E


    Lite-On

    Lite-On KBJ406G, Bridge Rectifier, 4A 600V, 4-Pin KBJ

    • BMUK Part # :-701-0350
    • BrandLite-On
    • Mfr Part No.KBJ406G
    •  Lite-On
    •
    • You will get a pack of 5 Bridge Rectifiers
    Lite-On KBJ406G, Bridge Rectifier, 4A 600V, 4-Pin KBJ
    Product Details

    Bridge Rectifiers with In-Line Terminals, KBJ Series, Lite-On







    Bridge Rectifiers - Lite-On

    Specifications
    Maximum Operating Temperature
    +150 °C
    Length
    25.2mm
    Brand
    Lite-On
    Package Type
    KBJ
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55 °C
    Width
    4.8mm
    Height
    15.3mm
    Pin Count
    4
    Dimensions
    25.2 x 4.8 x 15.3mm
    Bridge Type
    Single Phase
    Configuration
    Single
    Peak Average Forward Current
    4A
    Peak Non-Repetitive Forward Surge Current
    270A
    Peak Forward Voltage
    1.1V
    Peak Reverse Current
    500µA
    Peak Reverse Repetitive Voltage
    600V
