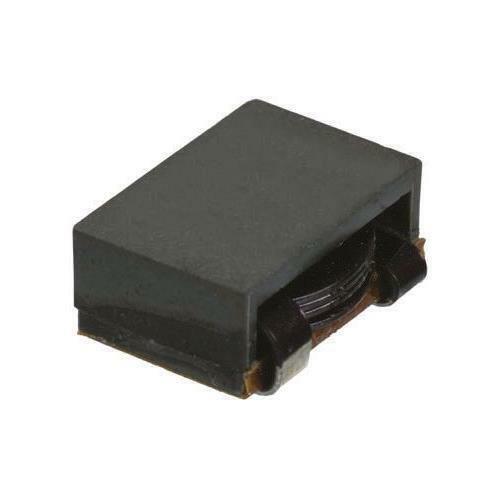

5 x Bourns SRP1265A Series Type 1265 Shielded Wire-wound SMD Inductor 820nH ±20% - Bourns
roll over the image to zoom in
£0.00
£7.49
RS 819-3557
Unit Quantity:
5
Unit Type:
Unit
Location:
TS 55F
Bourns
Bourns SRP1265A Series Type 1265 Shielded Wire-wound SMD Inductor with a Carbonyl Powder Core, 820 nH ±20% Wire-Wound
- BMUK Part # :-819-3557
- BrandBourns
- Mfr. Part No.SRP1265A-R82M
- Location :-TS 55F
You will get a pack of 5 Inductors
Product Details
SRP1265A Series Magnetically Shielded Power Inductors
Bourns SRP series of high current power inductors with a carbonyl powder core and are AEC-Q200 qualified.
Features and Benefits:
SRP1265A Series inductors have a shielded construction with a Carbonyl powder core
High saturation current
Inductance range 0.15 to 47 μH
AEC-Q200 qualified
RoHS compliant and halogen free
Applications include Automotive systems (Driver assistant, Information, Entertainment and Lighting), DC-DC converters and power supplies
Specifications
| Inductance | 820 nH | |
| Maximum DC Current | 33A | |
| Package/Case | 1265 | |
| Length | 13.5mm | |
| Depth | 12.5mm | |
| Automotive Standard | AEC-Q200 | |
| Height | 6.2mm | |
| Dimensions | 13.5 x 12.5 x 6.2mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 1.9mΩ | |
| Series | SRP1265A | |
| Core Material | Carbonyl Powder | |
| Maximum Operating Temperature | +150°C | |
| Moulded | Yes | |
| Minimum Operating Temperature | -40°C | |
| Inductor Construction | Wire-Wound |
To view the datasheet please Click Here
